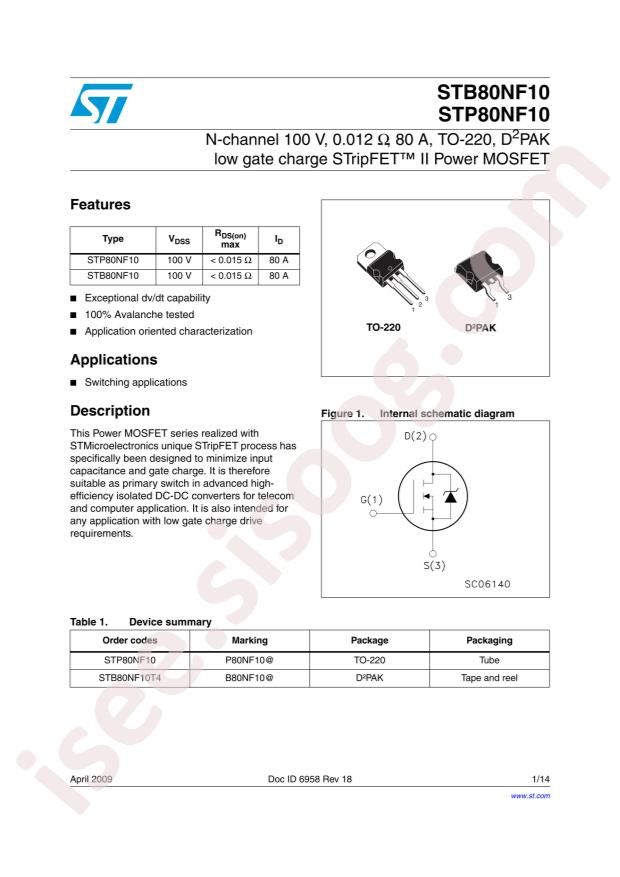

STB80NF10T4 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STB80NF10T4
|
|
حجم فایل
|
60.465
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STB80NF10T4
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
300W
-
Total Gate Charge (Qg@Vgs):
182nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
5500pF@25V
-
Continuous Drain Current (Id):
80A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
15mΩ@10V,40A
-
Package:
D2PAK
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
80A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
15mOhm @ 40A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
182nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
5500pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
300W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB80N
-
detail:
N-Channel 100V 80A (Tc) 300W (Tc) Surface Mount D2PAK
