- دیتاشیت VNH7070ASTR
VNH7070ASTR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VNH7070ASTR |
|---|---|
| حجم فایل | 78.427 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
دانلود دیتاشیت VNH7070ASTR |
دانلود دیتاشیت |
|---|
سایر مستندات

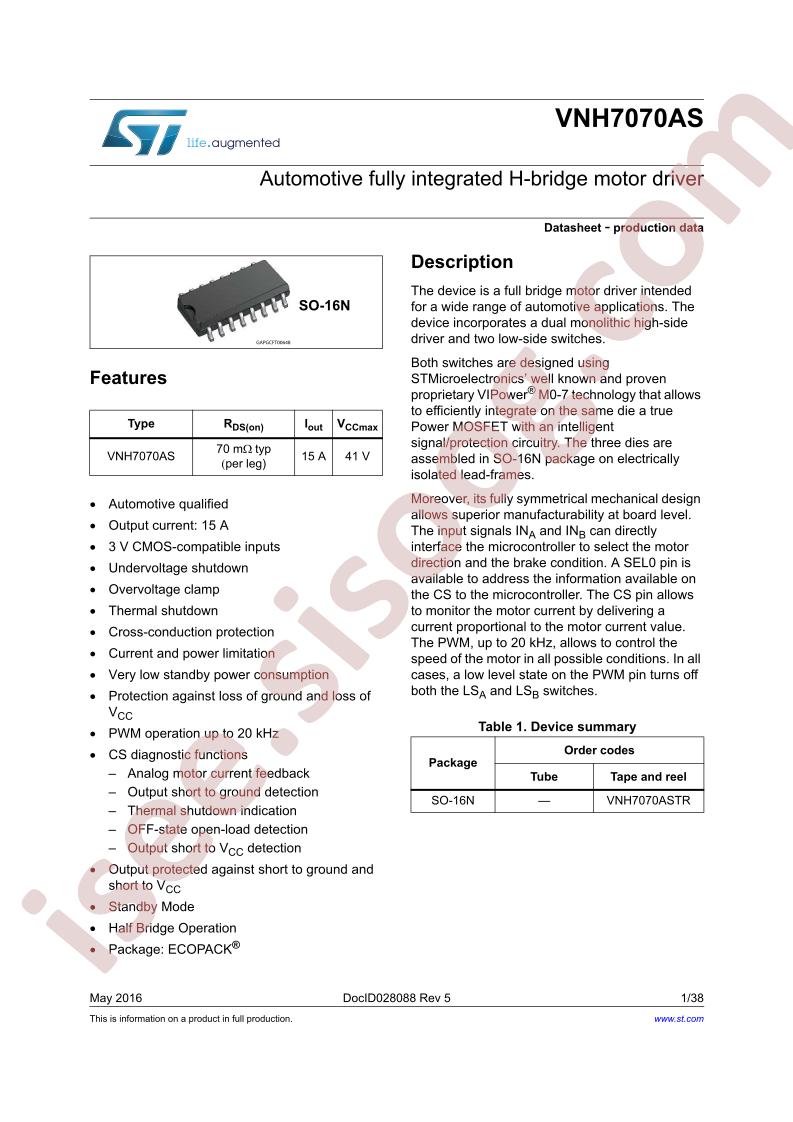

VNH7070AS Datasheet 38 pages
VIPower MO-7 H-Bridges Flyer 2 pages
مشخصات فنی
- RoHS: true
- Type: Brush DC Motor
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: STMicroelectronics VNH7070ASTR
- Interface: PWM
- Output Current: 15A
- Supply Voltage: 4V~28V
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: SOP-16
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100, VIPOWER™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Motor Type - Stepper: -
- Motor Type - AC, DC: Brushed DC
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Technology: Power MOSFET
- Step Resolution: -
- Applications: Automotive
- Current - Output: 15A
- Voltage - Supply: 4V ~ 28V
- Voltage - Load: 4V ~ 28V
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: VNH7070
- detail: Motor Driver Power MOSFET PWM 16-SOIC
