DRV8846RGET دیتاشیت

DRV8846RGET

مشخصات دیتاشیت

نام دیتاشیت DRV8846RGET
حجم فایل 82.368 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

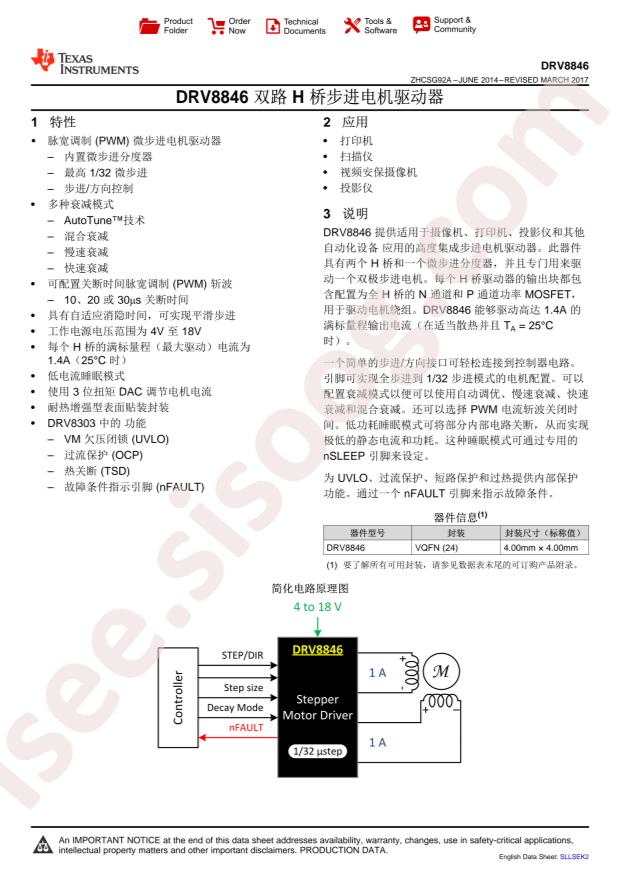

مشاهده دیتاشیت DRV8846RGET

دانلود دیتاشیت

سایر مستندات

DRV8846 35 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8846RGET
  • Interface: SPI,STEP/DIR
  • Output Current: 1.4A
  • Supply Voltage: 4V~18V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: VQFN-24-EP(4x4)
  • Manufacturer: Texas Instruments
  • Applications: DC Motors, General Purpose, Stepper Motors
  • Motor Type - AC, DC: -
  • Motor Type - Stepper: Bipolar
  • Technology: Power MOSFET
  • Series: -
  • Voltage - Supply: 4V ~ 18V
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Cut Tape (CT)
  • Package / Case: 24-VFQFN Exposed Pad
  • Step Resolution: 1 ~ 1/32
  • Voltage - Load: 4V ~ 18V
  • Part Status: Active
  • Output Configuration: Half Bridge (4)
  • Base Part Number: DRV8846
  • Supplier Device Package: 24-VQFN (4x4)
  • Mounting Type: Surface Mount
  • Current - Output: 1.4A
  • detail: Bipolar Motor Driver Power MOSFET Step/Direction 24-VQFN (4x4)
