STF28N60DM2 دیتاشیت

STF28N60DM2

مشخصات دیتاشیت

نام دیتاشیت STF28N60DM2
حجم فایل 59.012 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

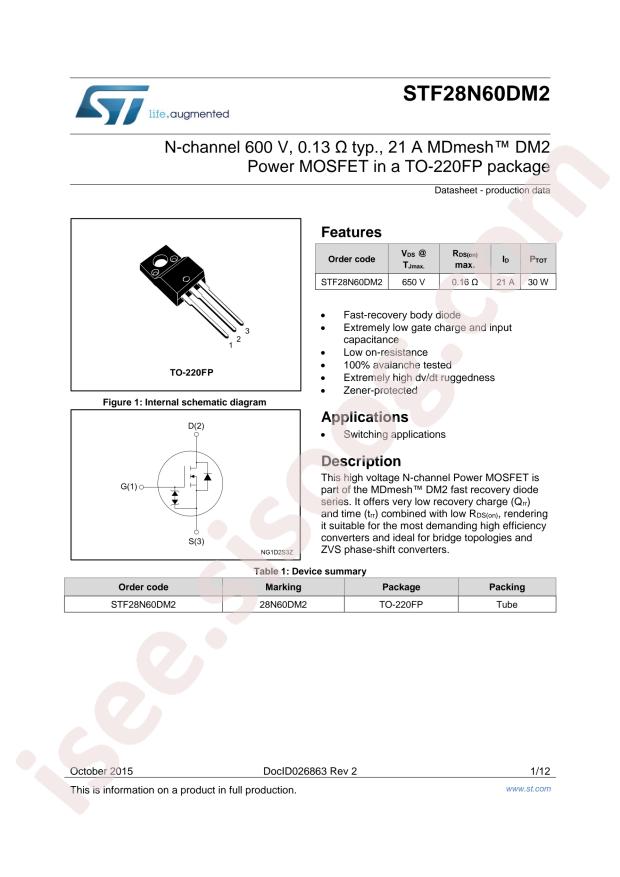

مشاهده دیتاشیت STF28N60DM2

دانلود دیتاشیت

سایر مستندات

STF28N60DM2 12 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STF28N60DM2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 30W
  • Total Gate Charge (Qg@Vgs): 34nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 1.5nF@100V
  • Continuous Drain Current (Id): 21A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 1.6pF@100V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 130mΩ@10V,10.5A
  • Package: TO-220F-3
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 21A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 160mOhm @ 10.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 34nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 1500pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 30W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF28
  • detail: N-Channel 600V 21A (Tc) 30W (Tc) Through Hole TO-220FP
