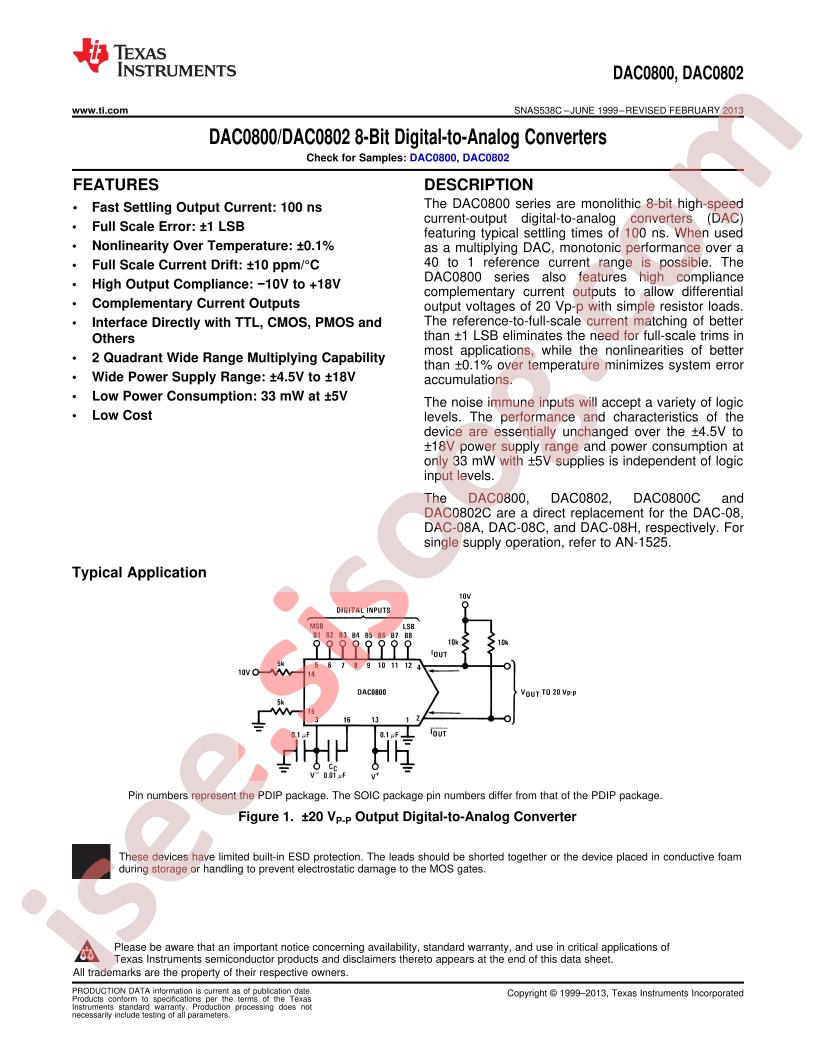

DAC0800/0802 دیتاشیت

DAC0800/0802

مشخصات دیتاشیت

نام دیتاشیت DAC0800/0802
حجم فایل 1245.179 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت DAC0800/0802

دانلود دیتاشیت

سایر مستندات

DAC0802LCMX/NOPB 20 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC0800LCN/NOPB
  • Interface: Parallel
  • Resolution: 8Bit
  • Output Type: Current-非缓冲
  • Settling Time: 150us
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Architecture: Multiplying DAC
  • INL/DNL (LSB): -
  • Number of Bits: 8
  • Part Status: Active
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Voltage - Supply, Digital: -
  • Packaging: Tube
  • Data Interface: Parallel
  • Reference Type: External
  • Series: -
  • Differential Output: Yes
  • Supplier Device Package: 16-PDIP
  • Number of D/A Converters: 1
  • Voltage - Supply, Analog: ±4.5V ~ 18V
  • Base Part Number: DAC0800
  • detail: 8 Bit Digital to Analog Converter 1 16-PDIP
