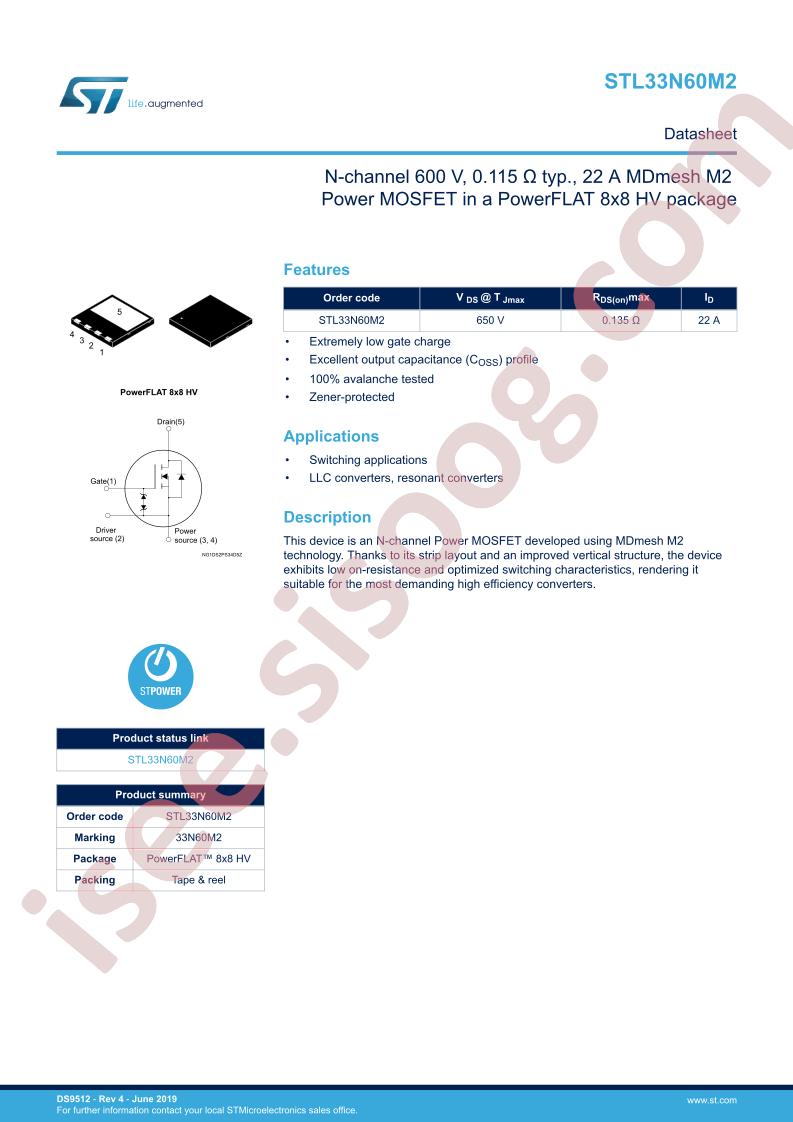

STL33N60M2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL33N60M2
|
|
حجم فایل
|
907.445
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II Plus
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
22A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
135mOhm @ 10.75A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
47nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
1700pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
190W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (8x8) HV
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL33
-
detail:
N-Channel 600V 22A (Tc) 190W (Tc) Surface Mount PowerFlat™ (8x8) HV
