TPS2420RSAR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS2420RSAR
|
|
حجم فایل
|
103.448
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
32
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Monitors & Reset Circuits
-
Datasheet:
Texas Instruments TPS2420RSAR
-
Operating Temperature:
-40°C~+125°C
-

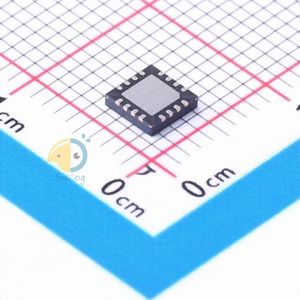

Package:
QFN-16-EP(4x4)
-
Manufacturer:
Texas Instruments
-
Internal Switch(s):
Yes
-
Current - Output (Max):
5A
-
Applications:
General Purpose
-
Voltage - Supply:
3V ~ 20V
-
Series:
-
-
Programmable Features:
Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, Latched Fault
-
Packaging:
Cut Tape (CT)
-
Type:
Hot Swap Controller
-
Package / Case:
16-VQFN Exposed Pad
-
Number of Channels:
1
-
Part Status:
Active
-
Features:
Thermal Limit, UVLO
-
Supplier Device Package:
16-QFN (4x4)
-
Mounting Type:
Surface Mount
-
Feature Pins:
CT, /FLT, IFLT, IMAX, IMON, LTCH, /PG
-
Base Part Number:
TPS242
-
detail:
Hot Swap Controller 1 Channel General Purpose 16-QFN (4x4)
