CSD95480RWJ دیتاشیت

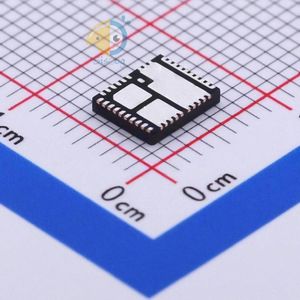

CSD95480RWJ

مشخصات دیتاشیت

نام دیتاشیت CSD95480RWJ
حجم فایل 99.095 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت CSD95480RWJ

دانلود دیتاشیت

سایر مستندات

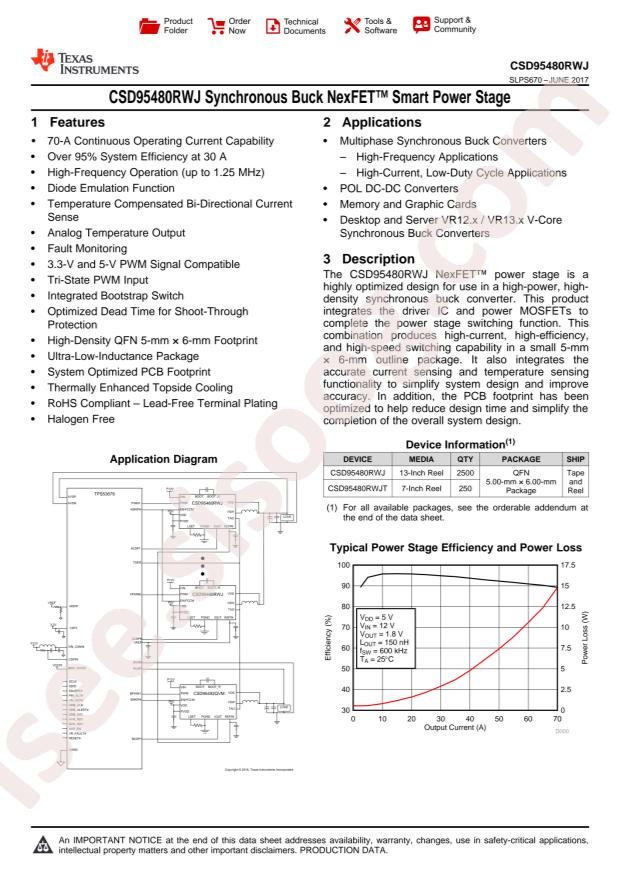

CSD95480RWJ Datasheet 15 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: -
  • Topology: Step-down
  • Datasheet: Texas Instruments CSD95480RWJ
  • Input Voltage: 4.5V~16V
  • Output Voltage: 5.5V
  • Number of Outputs: 1
  • Switching Frequency: 1.25MHz
  • Output Current (Max): 70A
  • Operating Temperature: -40°C~+125°C@(TJ)
  • Synchronous Rectification: Yes
  • Package: VQFN-CLIP-41-EP(5x6)
  • Manufacturer: Texas Instruments
  • Current - Peak Output: 90A
  • Features: Bootstrap Circuit
  • Fault Protection: Shoot-Through
  • Current - Output / Channel: 70A
  • Rds On (Typ): -
  • Technology: Power MOSFET
  • Output Configuration: Half Bridge
  • Load Type: Inductive, Capacitive
  • Series: NexFET™
  • Packaging: Cut Tape (CT)
  • Interface: PWM
  • Package / Case: 41-PowerTFQFN
  • Voltage - Load: 4.5V ~ 16V
  • Part Status: Active
  • Base Part Number: CSD9548
  • Supplier Device Package: 41-VQFN-CLIP (5x6)
  • Mounting Type: Surface Mount
  • Voltage - Supply: 4.5V ~ 5.5V
  • Applications: Synchronous Buck Converters
  • detail: Half Bridge Driver Synchronous Buck Converters Power MOSFET 41-VQFN-CLIP (5x6)
