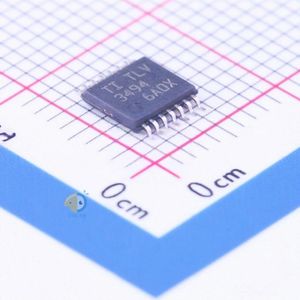

TLV3494AIPWT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TLV3494AIPWT
|
|
حجم فایل
|
77.704
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
34
|
مشخصات فنی
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments TLV3494AIPWT
-
Output Type:
CMOS;Push Pull;轨到轨
-
Supply Current:
1.2uA
-
Supply Voltage:
1.8V~5.5V
-
Number of Elements:
4
-
Operating Temperature:
-40°C~+125°C
-
Propagation Delay Time:
13.5us
-
Input Bias Current (Ib):
10pA
-
Input Offset Voltage (Vos):
15mV
-
Input Hysteresis Voltage (Vhys):
-
-
Common Mode Rejection Ratio (CMRR):
74dB
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Propagation Delay (Max):
13.5µs
-
Current - Quiescent (Max):
1.2µA
-
Voltage - Input Offset (Max):
15mV @ 5.5V
-
Part Status:
Active
-
Current - Output (Typ):
-
-
Current - Input Bias (Max):
10pA @ 5.5V
-
Packaging:
Cut Tape (CT)
-
Type:
General Purpose
-
CMRR, PSRR (Typ):
74dB CMRR, 69.12dB PSRR
-
Voltage - Supply, Single/Dual (±):
1.8V ~ 5.5V
-
Series:
-
-
Base Part Number:
TLV349
-
Supplier Device Package:
14-TSSOP
-
Mounting Type:
Surface Mount
-
Hysteresis:
-
-
detail:
Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail 14-TSSOP
