دیتاشیت DRV8323SRTAT
مشخصات دیتاشیت
| نام دیتاشیت | DRV8320(R), DRV8323(R) Datasheet |
|---|---|
| حجم فایل | 5191.189 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 94 |

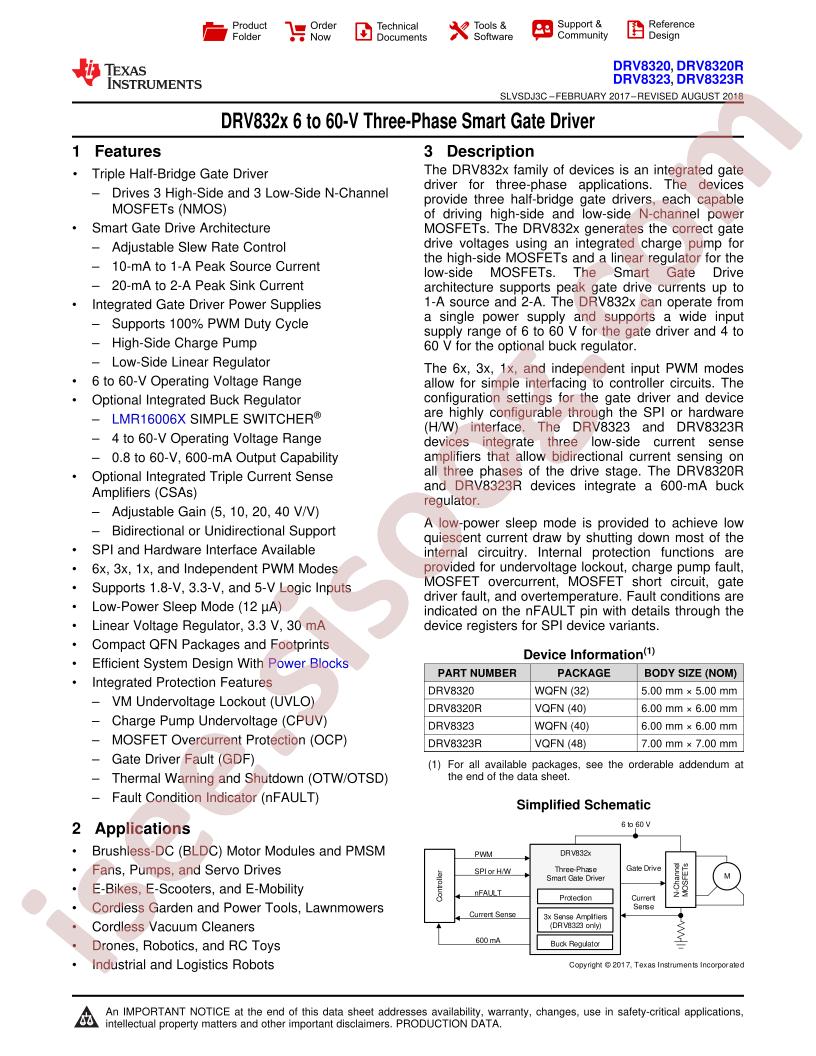

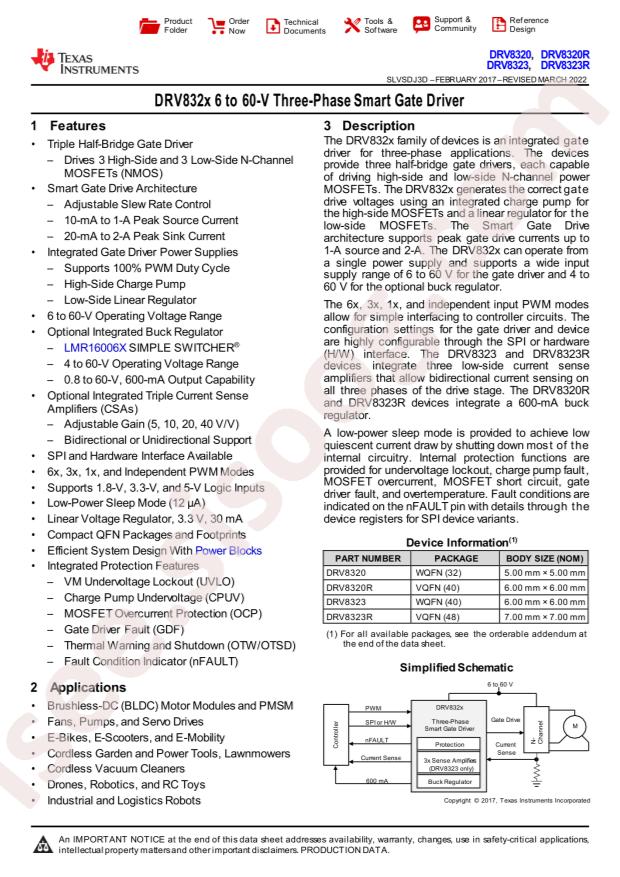

دانلود دیتاشیت DRV8320(R), DRV8323(R) Datasheet |
DRV8320(R), DRV8323(R) Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments DRV8323SRTAT
- Interface: SPI,STEP/DIR
- Output Current: 5mA
- Supply Voltage: 6V~60V
- Operating Temperature: -40°C~+125°C@(Ta)

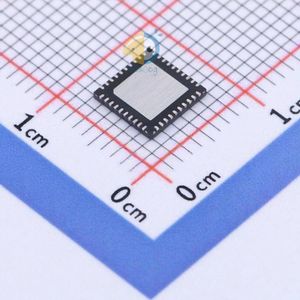

- Package: QFN-40-EP(6x6)
- Manufacturer: Texas Instruments
- Applications: Brushless DC (BLDC)
- Motor Type - AC, DC: Brushless DC (BLDC)
- Motor Type - Stepper: Multiphase
- Technology: Power MOSFET
- Series: -
- Voltage - Supply: 6V ~ 60V
- Function: Controller - Commutation, Direction Management
- Packaging: Cut Tape (CT)
- Package / Case: 40-WFQFN Exposed Pad
- Step Resolution: -
- Voltage - Load: -
- Part Status: Active
- Output Configuration: Half Bridge (3)
- Base Part Number: DRV8323
- Supplier Device Package: 40-WQFN (6x6)
- Mounting Type: Surface Mount
- Current - Output: 5mA
- detail: Multiphase Motor Driver Power MOSFET SPI 40-WQFN (6x6)
