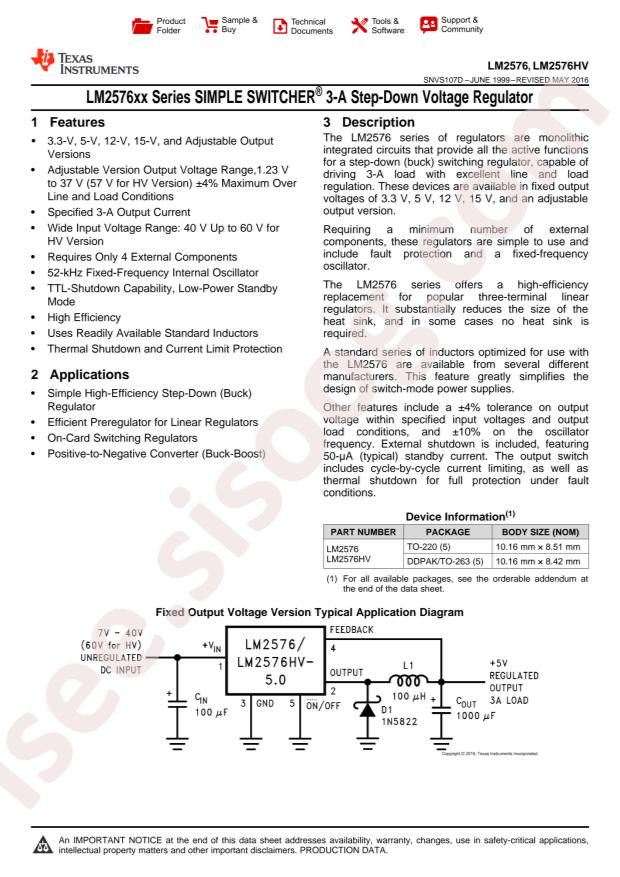

LM2576T-12/NOPB Datasheet

LM2576T-12/NOPB

Datasheet specifications

Datasheet's name LM2576T-12/NOPB
File size 105.535 KB
File type pdf
Number of pages 43

Download Datasheet LM2576T-12/NOPB

Download Datasheet

Other documentations

LM2576(HV) 44 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: Texas Instruments LM2576T-12/NOPB
  • Output Type: Fixed
  • Input Voltage: 4V~40V
  • Output Voltage: 12V
  • Number of Outputs: 1
  • Switching Frequency: 52kHz
  • Output Current (Max): 3A
  • Operating Temperature: -40°C~+125°C@(TJ)
  • Synchronous Rectification: NO
  • Package: TO-220-5
  • Manufacturer: Texas Instruments
  • Current - Output: 3A
  • Voltage - Input (Max): 40V
  • Frequency - Switching: 52kHz
  • Part Status: Active
  • Base Part Number: LM2576
  • Voltage - Output (Min/Fixed): 12V
  • Package / Case: TO-220-5
  • Series: SIMPLE SWITCHER®
  • Packaging: Tube
  • Synchronous Rectifier: No
  • Output Configuration: Positive
  • Voltage - Output (Max): -
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-5
  • Voltage - Input (Min): 4V
  • detail: Buck Switching Regulator IC Positive Fixed 12V 1 Output 3A TO-220-5
