LM25037MTX/NOPB دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LM25037MTX/NOPB	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Full-Bridge;Half-Bridge;Push-pull

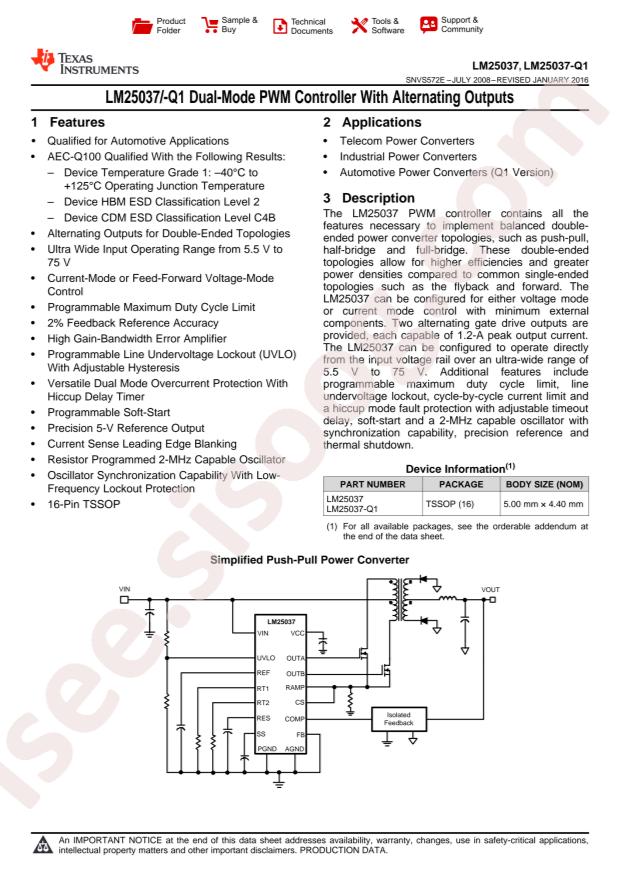

Datasheet: Texas Instruments LM25037MTX/NOPB
Duty Cycle: 96%
Supply Voltage: 5.5V~75V
Switching Frequency: 2MHz
Operating Temperature: -40°C~+125°C@(TJ)
Package: TSSOP-16
Manufacturer: Texas Instruments
Part Status: Active
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Packaging: Cut Tape (CT)
Frequency - Switching: 2MHz
Supplier Device Package: 16-TSSOP
Number of Outputs: 1
Serial Interfaces: -
Synchronous Rectifier: No
Function: Step-Up/Step-Down
Clock Sync: No
Mounting Type: Surface Mount
Output Configuration: Positive, Isolation Capable
Base Part Number: LM2503
Series: -
Output Type: Transistor Driver
Control Features: Current Limit, Dead Time Control, Enable, Ramp, Soft Start
Output Phases: 1
Duty Cycle (Max): 96%
Voltage - Supply (Vcc/Vdd): 5.5V ~ 75V
detail: Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
