دیتاشیت UCC27512MDRSTEP

UCC27512-EP Datasheet

مشخصات دیتاشیت

نام دیتاشیت UCC27512-EP Datasheet
حجم فایل 1503.259 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

دانلود دیتاشیت UCC27512-EP Datasheet

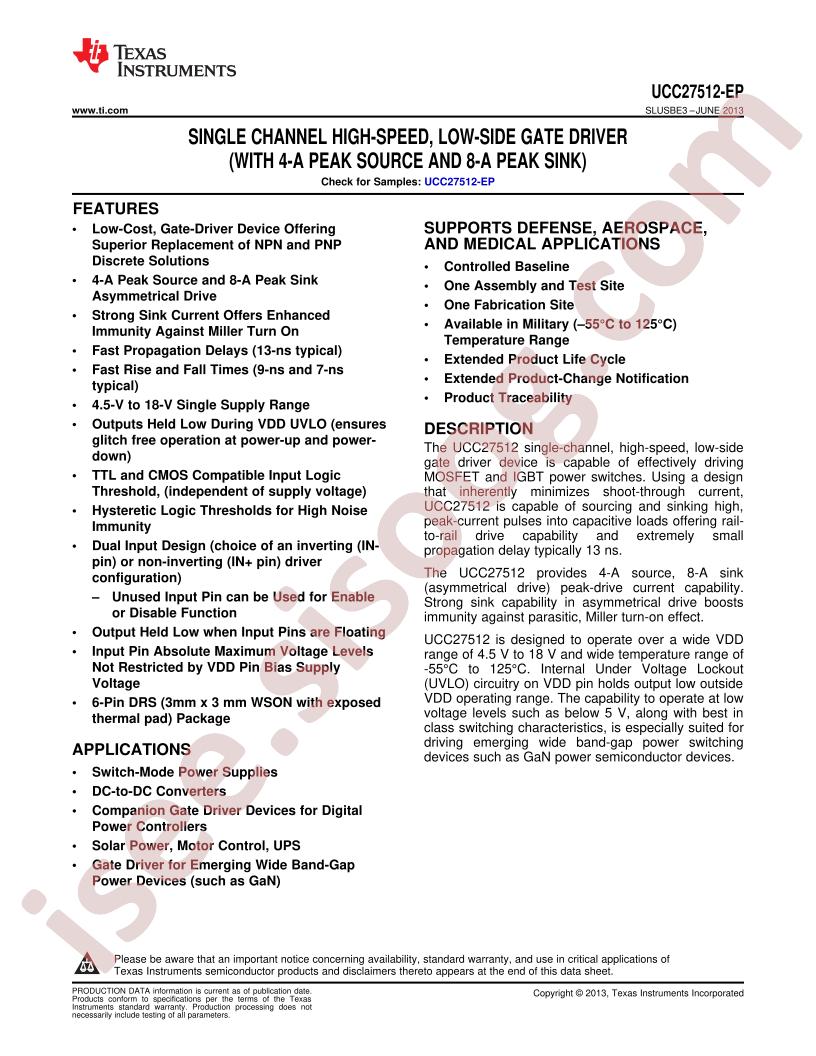

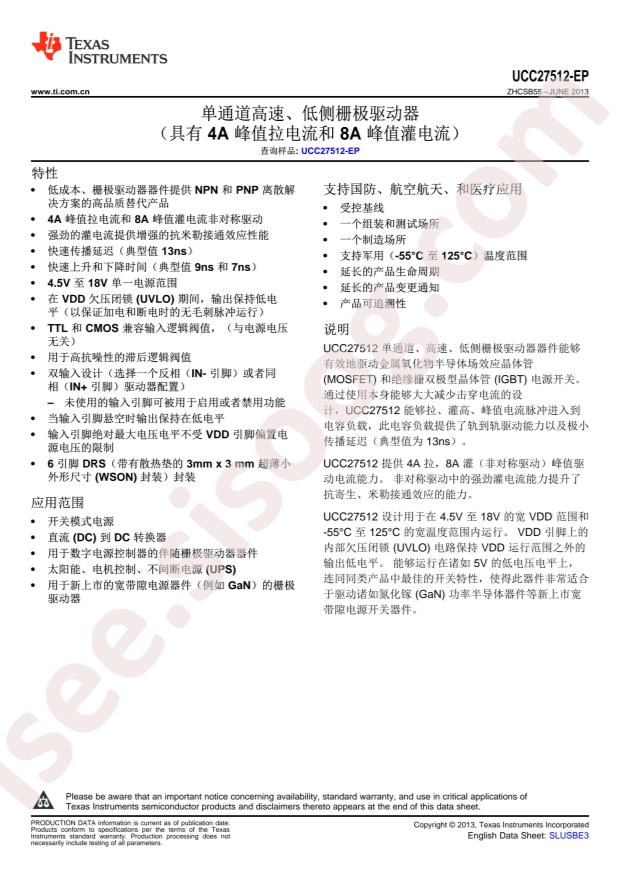

UCC27512-EP Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27512MDRSTEP
  • Fall Time: 7ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -55°C~+125°C@(Tj)
  • Peak Output Current(sink): 8A
  • Peak Output Current(source): 4A
  • Package: SON-6-EP(3x3)
  • Manufacturer: Texas Instruments
  • Channel Type: Single
  • Input Type: Inverting, Non-Inverting
  • Voltage - Supply: 4.5V ~ 18V
  • Series: -
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Package / Case: 6-WDFN Exposed Pad
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 1V, 2.4V
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Gate Type: IGBT, N-Channel MOSFET
  • Base Part Number: UCC275
  • Supplier Device Package: 6-SON (3x3)
  • Current - Peak Output (Source, Sink): 4A, 8A
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 6-SON (3x3)
