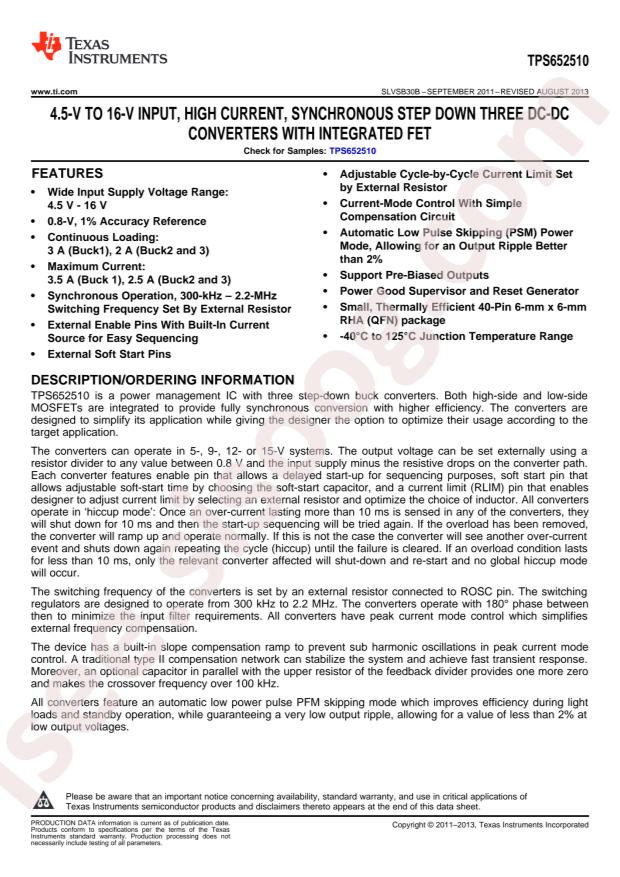

دیتاشیت TPS652510RHAR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS652510
|
| حجم فایل |
1968.504
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS652510RHAR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~16V
-
Output Voltage:
0.8V~16V
-
Number of Outputs:
3
-
Switching Frequency:
2.2MHz
-
Output Current (Max):
3A;2A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
QFN-40-EP(6x6)
-
Manufacturer:
Texas Instruments
-
Current - Output:
3A, 2A
-
Voltage - Input (Max):
16V
-
Frequency - Switching:
300kHz ~ 2.2MHz
-
Part Status:
Active
-
Base Part Number:
TPS652
-
Voltage - Output (Min/Fixed):
0.8V
-
Package / Case:
40-VFQFN Exposed Pad
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Synchronous Rectifier:
Yes
-
Output Configuration:
Positive
-
Voltage - Output (Max):
16V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
40-VQFN (6x6)
-
Voltage - Input (Min):
4.5V
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 3 Output 3A, 2A 40-VFQFN Exposed Pad
