دیتاشیت UC2526AN
مشخصات دیتاشیت
| نام دیتاشیت | UC1526A, 2526A, 3526A |
|---|---|
| حجم فایل | 643.713 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت UC1526A, 2526A, 3526A |

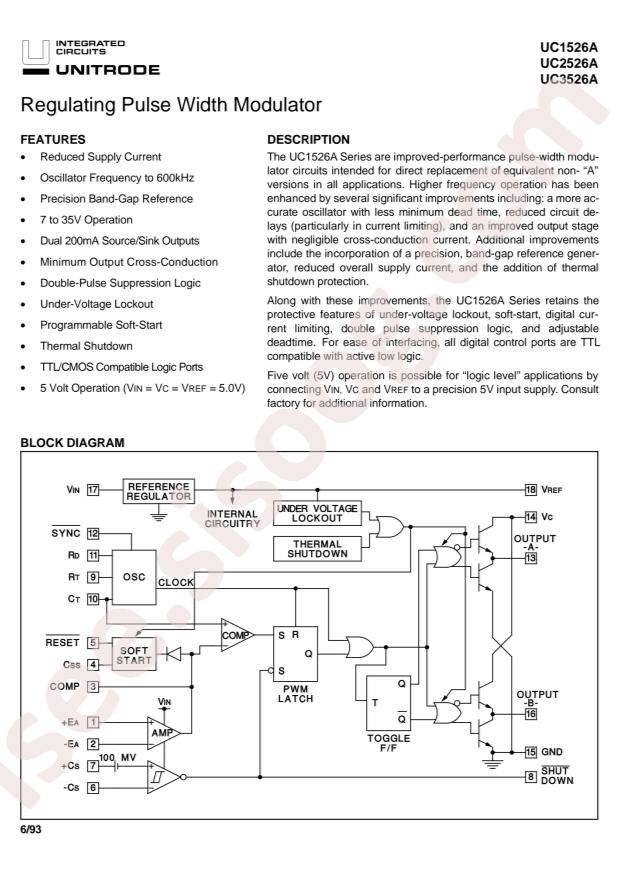

UC1526A, 2526A, 3526A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;Full-Bridge;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UC2526AN
- Input Voltage: 7V~35V
- Duty Cycle (Max): 49%
- Number of Outputs: 2
- Switching Frequency: 600kHz
- Operating Temperature: -25°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: PDIP-18
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 18-DIP (0.300", 7.62mm)
- Packaging: Tube
- Frequency - Switching: 1Hz ~ 600kHz
- Supplier Device Package: 18-PDIP
- Serial Interfaces: -
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Mounting Type: Through Hole
- Output Configuration: Positive
- Base Part Number: UC252
- Series: -
- Output Type: Transistor Driver
- Control Features: Enable, Frequency Control, Reset, Soft Start
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 7V ~ 35V
- detail: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 18-PDIP
