دیتاشیت L9960TR

L9960(T)

مشخصات دیتاشیت

نام دیتاشیت L9960(T)
حجم فایل 1382.767 کیلوبایت
نوع فایل pdf
تعداد صفحات 95

دانلود دیتاشیت L9960(T)

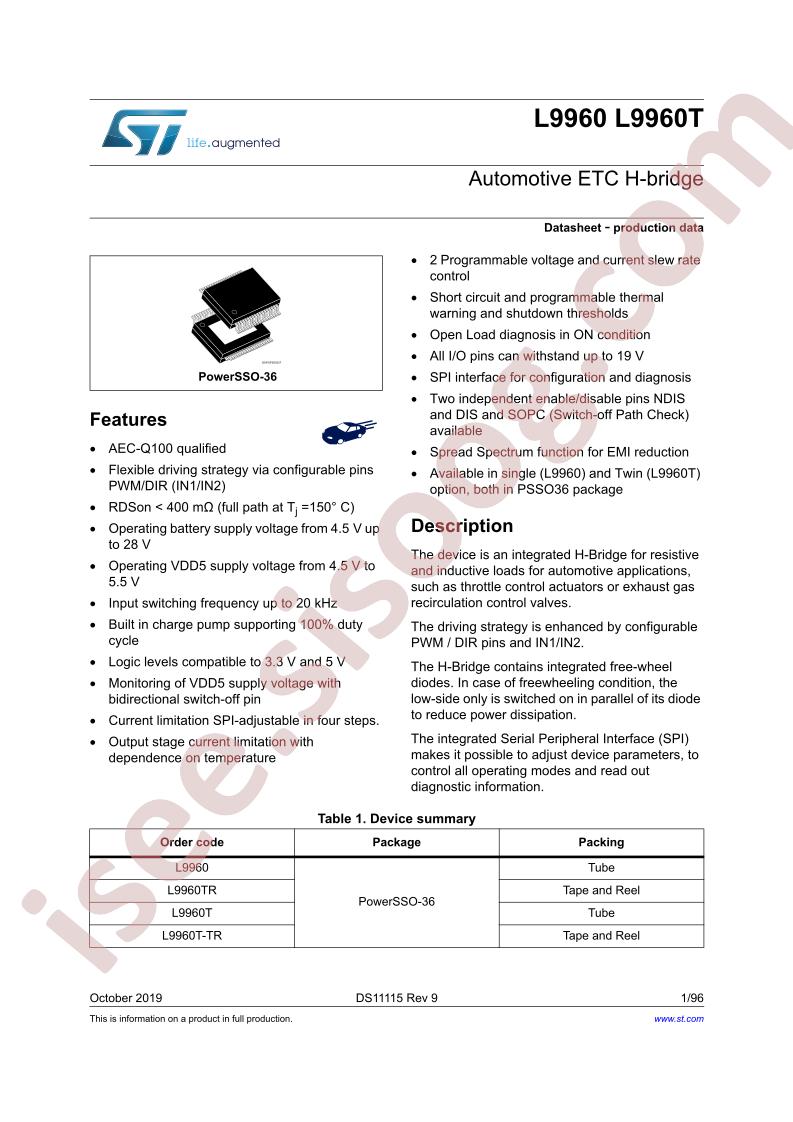

L9960(T) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Half Bridge (2)
  • Applications: General Purpose
  • Interface: SPI
  • Load Type: Inductive, Capacitive, Resistive
  • Technology: Power MOSFET
  • Rds On (Typ): 400mOhm LS + HS
  • Current - Output / Channel: -
  • Current - Peak Output: -
  • Voltage - Supply: 4.5V ~ 5.5V
  • Voltage - Load: 4.5V ~ 28V
  • Operating Temperature: -40°C ~ 170°C (TJ)
  • Features: Slew Rate Controlled
  • Fault Protection: Over Temperature, Short Circuit
  • Mounting Type: Surface Mount
  • Package / Case: 36-PowerFSOP (0.295", 7.50mm Width)
  • Supplier Device Package: PowerSSO-36
  • Base Part Number: L9960
  • detail: Half Bridge (2) Driver General Purpose Power MOSFET PowerSSO-36
