STO36N60M6 دیتاشیت

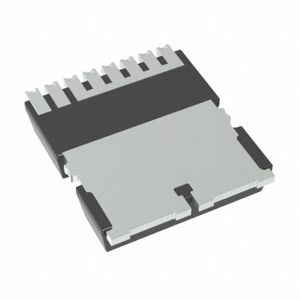

STO36N60M6

مشخصات دیتاشیت

نام دیتاشیت STO36N60M6
حجم فایل 54.145 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت STO36N60M6

دانلود دیتاشیت

سایر مستندات

STO36N60M6 Datasheet 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STO36N60M6
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 230W
  • Total Gate Charge (Qg@Vgs): 44.3nC@10V
  • Input Capacitance (Ciss@Vds): 1960pF@100V
  • Continuous Drain Current (Id): 30A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.75V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 99mΩ@15A,10V
  • Package: TOLL
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ M6
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 30A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 99mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id: 4.75V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 44.3nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 1960pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 230W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TOLL (HV)
  • Package / Case: 8-PowerSFN
  • Base Part Number: STO36
  • detail: N-Channel 600V 30A (Tc) 230W (Tc) Surface Mount TOLL (HV)
