دیتاشیت TPS65263RHBT
مشخصات دیتاشیت
| نام دیتاشیت | TPS65263RHBT |
|---|---|
| حجم فایل | 94.785 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |
TPS65263RHBT |
دانلود دیتاشیت |
|---|
سایر مستندات

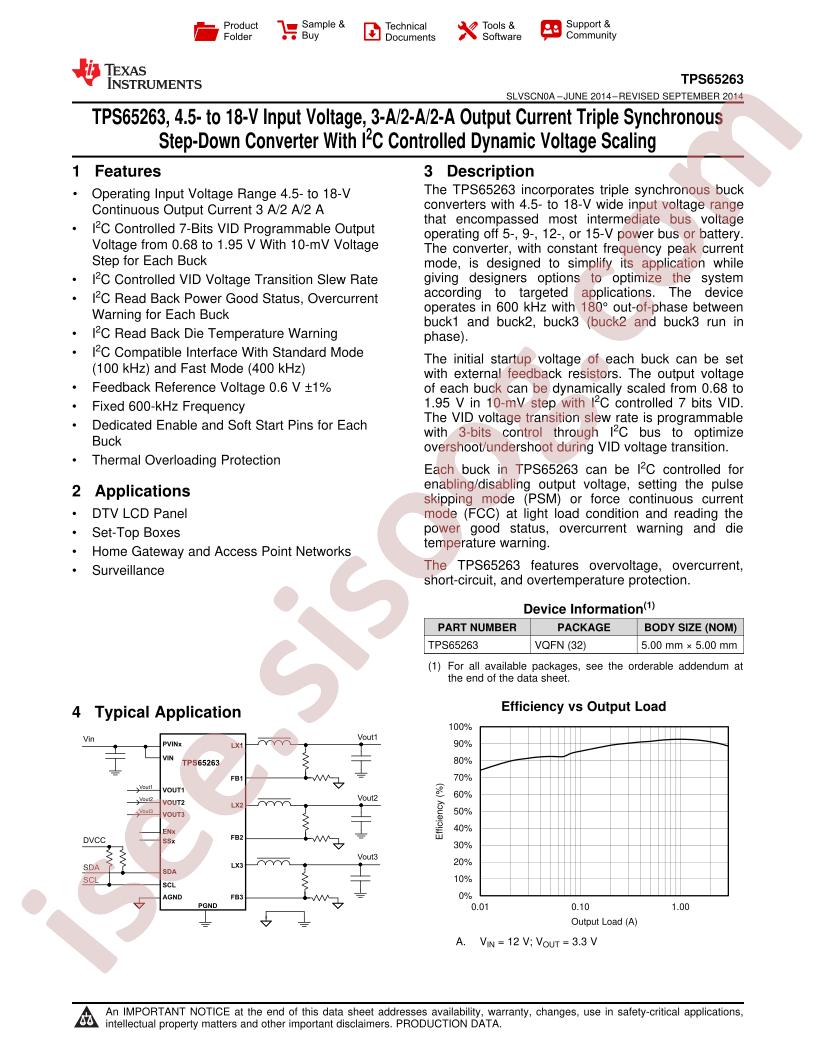

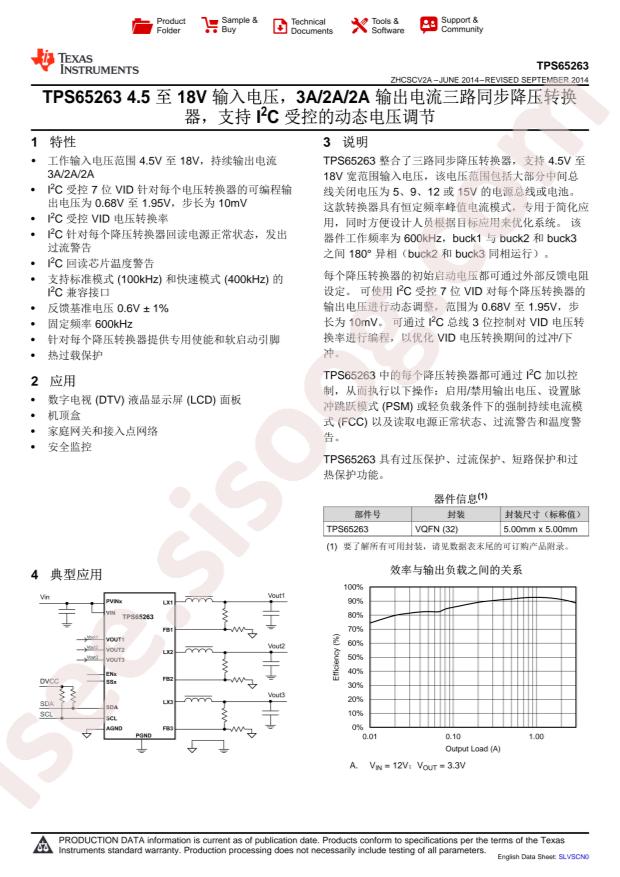

TPS65263 Data Sheet 47 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS65263RHBT
- Output Type: Adjustable
- Input Voltage: 4.5V~18V
- Output Voltage: 0.68V~6.3V
- Number of Outputs: 3
- Switching Frequency: 600kHz
- Output Current (Max): 3A;2A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: QFN-32-EP(5x5)
- Manufacturer: Texas Instruments
- Current - Output: 3A, 2A
- Voltage - Input (Max): 18V
- Frequency - Switching: 600kHz
- Part Status: Active
- Base Part Number: TPS652
- Voltage - Output (Min/Fixed): 0.68V
- Package / Case: 32-VFQFN Exposed Pad
- Series: -
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: Yes
- Output Configuration: Positive
- Voltage - Output (Max): 6.3V
- Mounting Type: Surface Mount
- Supplier Device Package: 32-VQFN (5x5)
- Voltage - Input (Min): 4.5V
- detail: Buck Switching Regulator IC Positive Programmable 0.68V 3 Output 3A, 2A 32-VFQFN Exposed Pad
