STP160N3LL دیتاشیت

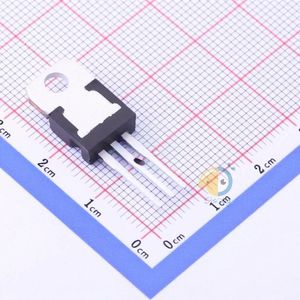

STP160N3LL

مشخصات دیتاشیت

نام دیتاشیت STP160N3LL
حجم فایل 54.816 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

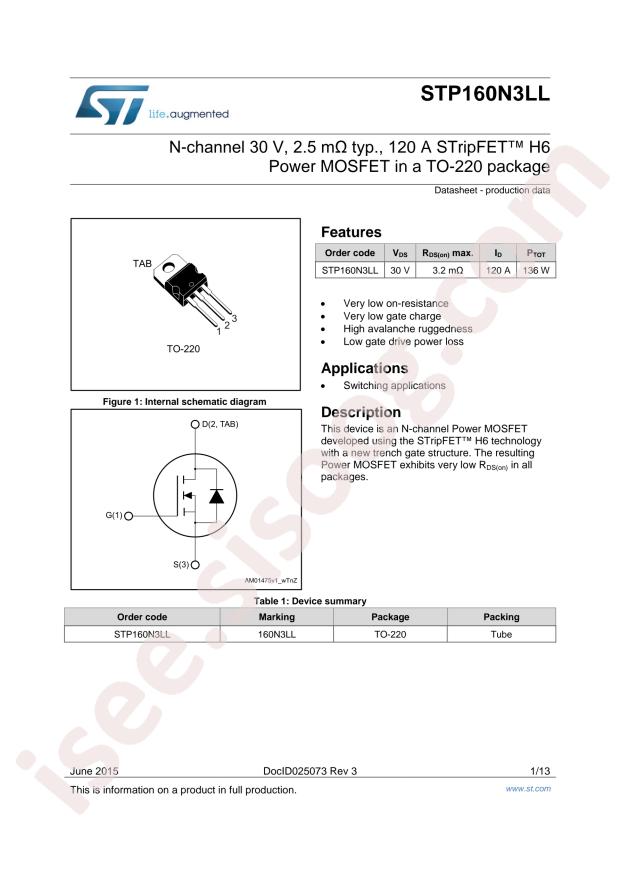

مشاهده دیتاشیت STP160N3LL

دانلود دیتاشیت

سایر مستندات

STP160N3LL 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP160N3LL
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 136W
  • Total Gate Charge (Qg@Vgs): 42nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 3500pF@25V
  • Continuous Drain Current (Id): 120A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.2mΩ@60A,10V
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: STripFET™ H6
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 3.2mOhm @ 60A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 42nC @ 4.5V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 3500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 136W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220
  • Package / Case: TO-220-3
  • Base Part Number: STP160
  • detail: N-Channel 30V 120A (Tc) 136W (Tc) Through Hole TO-220
