- دیتاشیت UCC21225ANPLT
UCC21225ANPLT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC21225ANPLT |
|---|---|
| حجم فایل | 110.297 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |
دانلود دیتاشیت UCC21225ANPLT |
دانلود دیتاشیت |
|---|
سایر مستندات

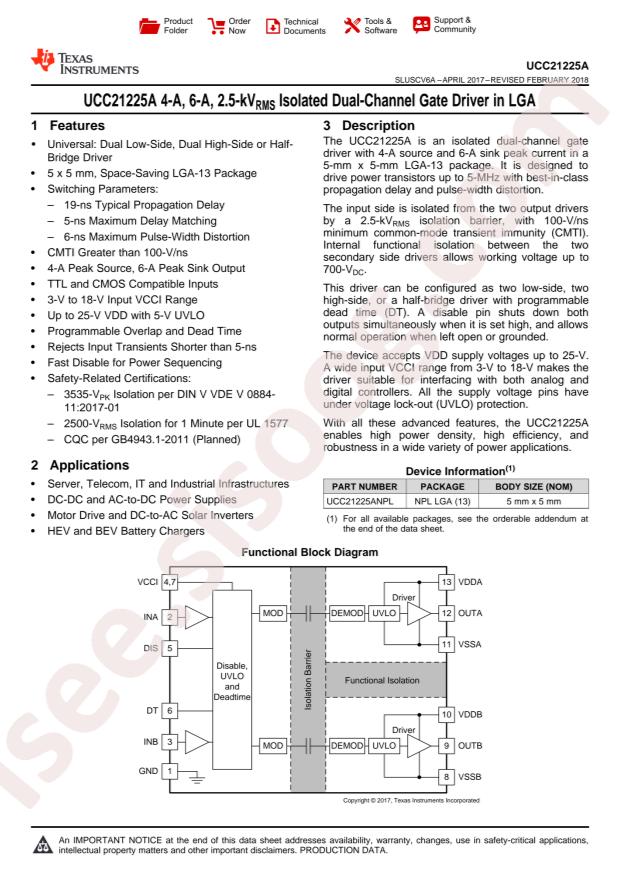

UCC21225A Datasheet 48 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC21225ANPLT
- Fall Time: 7ns
- Rise Time: 6ns
- Number of Drivers: 2
- Operating Temperature: -40°C~+125°C
- Peak Output Current(sink): 6A
- Peak Output Current(source): 4A
- Package: VLGA-13
- Manufacturer: Texas Instruments
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Rise / Fall Time (Typ): 6ns, 7ns
- Voltage - Forward (Vf) (Typ): -
- Current - Peak Output: -
- Technology: Capacitive Coupling
- Part Status: Active
- Approval Agency: CQC, CSA, UR, VDE
- Voltage - Output Supply: 3V ~ 18V
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 13-VFLGA
- Number of Channels: 2
- Current - Output High, Low: 4A, 6A
- Series: -
- Voltage - Isolation: 2500Vrms
- Pulse Width Distortion (Max): 6ns
- Base Part Number: UCC212
- Common Mode Transient Immunity (Min): 100V/ns
- Supplier Device Package: 13-VLGA (5x5)
- detail: Gate Driver Capacitive Coupling 2500Vrms 2 Channel 13-VLGA (5x5)
