- OPA277PA

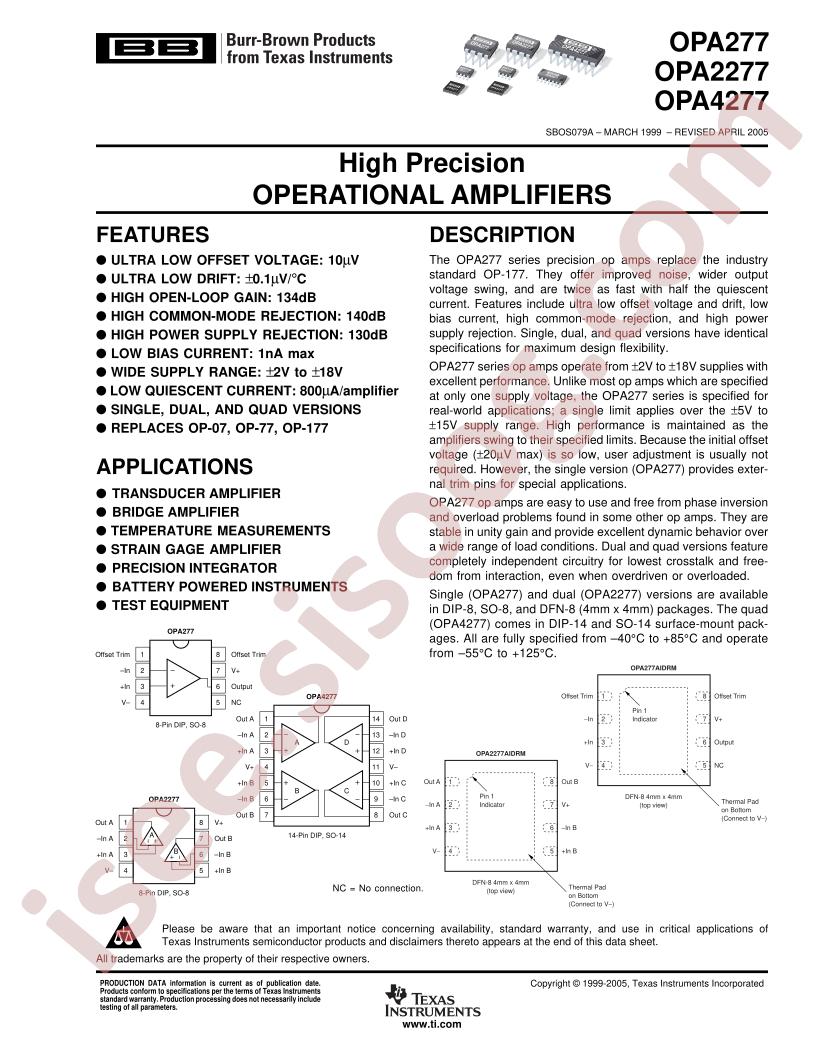

OPA277PA Datasheet
Datasheet specifications
| Datasheet's name | OPA277PA |
|---|---|
| File size | 1492.972 KB |
| File type | |
| Number of pages | 27 |
Download Datasheet OPA277PA |
Download Datasheet |
|---|
Other documentations
OPA277, 2277, 4277 Datasheet 43 pages
OPA2277UA 44 pages
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Precision OpAmps
- Datasheet: Texas Instruments OPA277PA
- Rail to Rail: -
- Output Current: 35mA
- Number of Circuits: 1
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 500pA
- Gain Bandwidth Product(GBP): 1MHz
- Package: PDIP-8
- Manufacturer: Texas Instruments
- Current - Output / Channel: 35mA
- Slew Rate: 0.8V/µs
- Voltage - Input Offset: 20µV
- Part Status: Active
- Packaging: Tube
- Supplier Device Package: 8-PDIP
- Package / Case: 8-DIP (0.300", 7.62mm)
- Voltage - Supply, Single/Dual (±): 4V ~ 36V, ±2V ~ 18V
- Series: -
- Output Type: -
- Base Part Number: OPA277
- Current - Supply: 790µA
- Mounting Type: Through Hole
- Amplifier Type: General Purpose
- Current - Input Bias: 500pA
- Gain Bandwidth Product: 1MHz
- detail: General Purpose Amplifier 1 Circuit 8-PDIP
