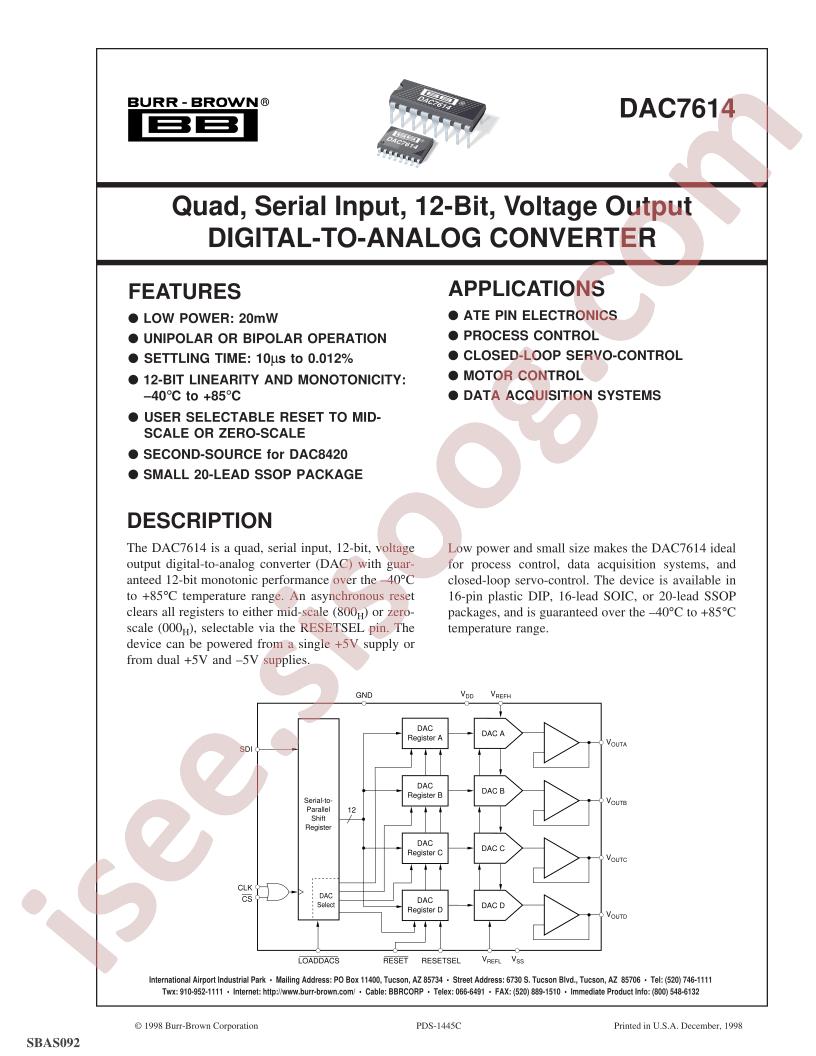

DAC7614 Datasheet دیتاشیت

DAC7614 Datasheet

مشخصات دیتاشیت

نام دیتاشیت DAC7614 Datasheet
حجم فایل 510.012 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت DAC7614 Datasheet

دانلود دیتاشیت

سایر مستندات

TI DAC7614EB/1K 18 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC7614E/1K
  • Interface: SPI
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±2LSB;±1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: SSOP-20
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Architecture: R-2R
  • INL/DNL (LSB): ±2 (Max), ±1 (Max)
  • Number of Bits: 12
  • Part Status: Active
  • Package / Case: 20-SSOP (0.209", 5.30mm Width)
  • Voltage - Supply, Digital: 5V
  • Packaging: Cut Tape (CT)
  • Data Interface: SPI
  • Reference Type: External
  • Series: -
  • Differential Output: No
  • Supplier Device Package: 20-SSOP
  • Number of D/A Converters: 4
  • Voltage - Supply, Analog: ±5V
  • Base Part Number: DAC7614
  • detail: 12 Bit Digital to Analog Converter 4 20-SSOP
