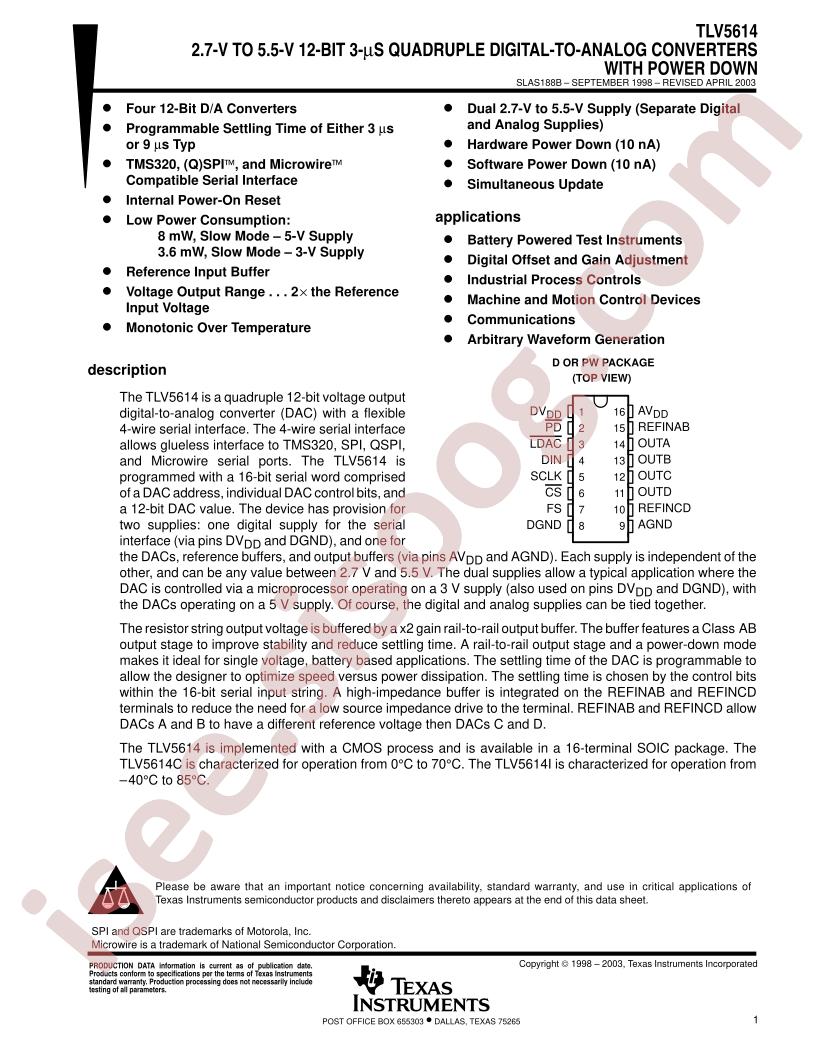

TLV5614 数据手册
其他文档
TLV5614ID 35 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
- Datasheet: Texas Instruments TLV5614IPW
- Interface: SPI
- Resolution: 12Bit
- Output Type: Voltage-缓冲
- Settling Time: 20us
- Supply Voltage: 2.7V~3.3V;5V
- Integral nonlinearity: ±1.5LSB;±0.5LSB
- Operating Temperature: -40°C~+85°C
- Package: TSSOP-16
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Architecture: String DAC
- INL/DNL (LSB): ±1.5, ±0.5
- Number of Bits: 12
- Part Status: Active
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Voltage - Supply, Digital: 2.7V ~ 3.3V, 5V
- Packaging: Tube
- Data Interface: SPI
- Reference Type: External
- Series: -
- Differential Output: No
- Supplier Device Package: 16-TSSOP
- Number of D/A Converters: 4
- Voltage - Supply, Analog: 2.7V ~ 3.3V, 5V
- Base Part Number: TLV561
- detail: 12 Bit Digital to Analog Converter 4 16-TSSOP
