دیتاشیت TMS320F28377DPTPQ

مشخصات دیتاشیت

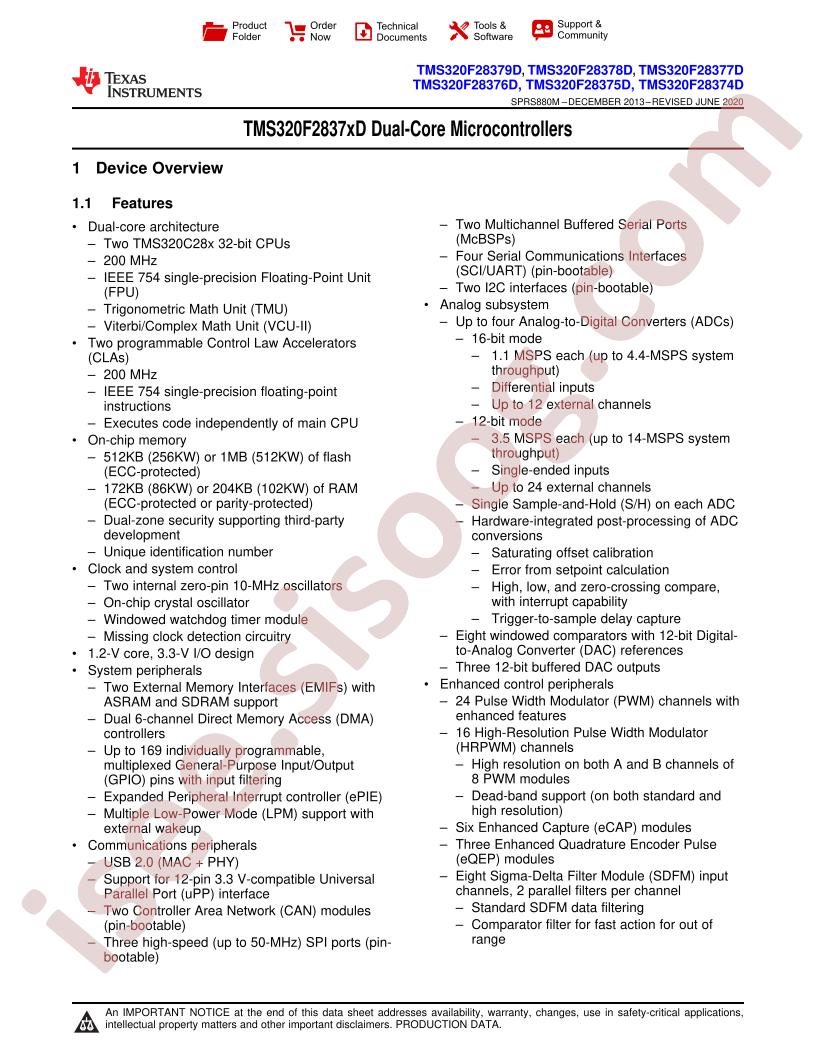

دانلود دیتاشیت TMS320F2837xD Datasheet	TMS320F2837xD Datasheet Datasheet

RoHS: true
CPU Core: Other series
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit;16bit
DAC (Bit): 12bit
Datasheet: Texas Instruments TMS320F28377DPTPQ
CPU Maximum Speed: 200MHz
GPIO Ports Number: 97
Low-Voltage Detect: Yes
Internal Oscillator: Yes
Direct Memory Access: Yes
Program Storage Size: 1MB
Universal Serial Bus: Yes
Operating Voltage Range: 1.14V~3.47V
Operating Temperature Range: -40°C~+125°C
Package: LQFP-176(24x24)
Manufacturer: Texas Instruments
Speed: 200MHz
Data Converters: A/D 20x12b, 9x16b; D/A 3x12b
Oscillator Type: Internal
Package / Case: 176-LQFP Exposed Pad
Packaging: Tray
Peripherals: DMA, POR, PWM, WDT
Part Status: Active
Supplier Device Package: 176-HLQFP (24x24)
RAM Size: 102K x 16
Program Memory Type: FLASH
Core Size: 32-Bit Dual-Core
Core Processor: C28x
Program Memory Size: 1MB (512K x 16)
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Number of I/O: 97
Base Part Number: TMS320
Series: Automotive, AEC-Q100, C2000™ C28x Delfino™
EEPROM Size: -
Connectivity: CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB
Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.47V
detail: C28x Automotive, AEC-Q100, C2000™ C28x Delfino™ Microcontroller IC 32-Bit Dual-Core 200MHz 1MB (512K x 16) FLASH 176-HLQFP (24x24)
