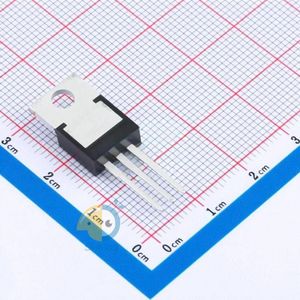

CSD19506KCS دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD19506KCS
|
|
حجم فایل
|
81.246
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

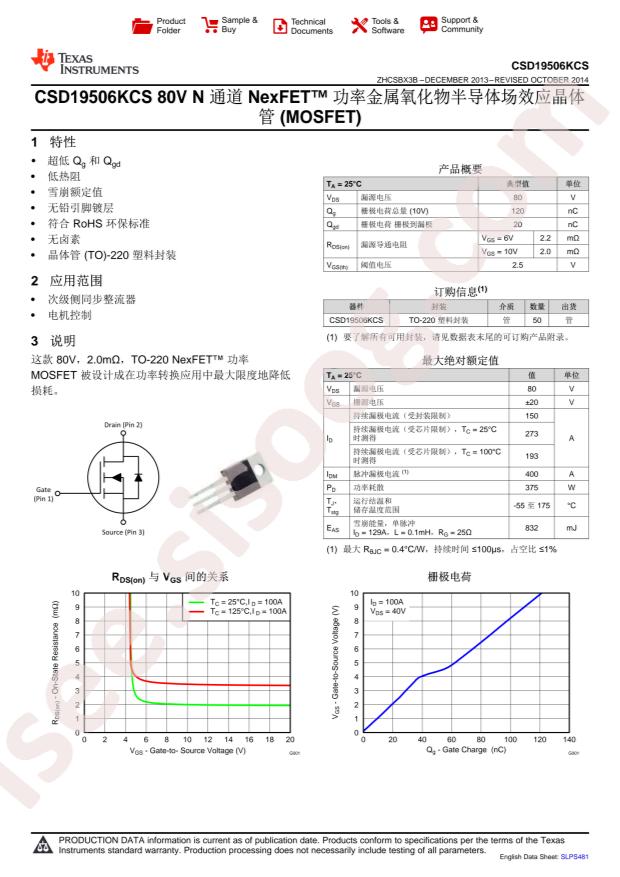

Texas Instruments CSD19506KCS
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
375W
-
Total Gate Charge (Qg@Vgs):
156nC@10V
-
Drain Source Voltage (Vdss):
80V
-
Input Capacitance (Ciss@Vds):
12200pF@40V
-
Continuous Drain Current (Id):
100A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.2V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.3mΩ@100A,10V
-
Package:
TO-220
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
375W (Tc)
-
Drain to Source Voltage (Vdss):
80V
-
Rds On (Max) @ Id, Vgs:
2.3mOhm @ 100A, 10V
-
Vgs (Max):
±20V
-
FET Type:
N-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Technology:
MOSFET (Metal Oxide)
-
Current - Continuous Drain (Id) @ 25°C:
100A (Ta)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
12200pF @ 40V
-
Packaging:
Tube
-
Package / Case:
TO-220-3
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
3.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
156nC @ 10V
-
Supplier Device Package:
TO-220-3
-
Mounting Type:
Through Hole
-
Base Part Number:
CSD1950
-
detail:
N-Channel 80V 100A (Ta) 375W (Tc) Through Hole TO-220-3
