DAC5675AIPHP دیتاشیت

DAC5675AIPHP

مشخصات دیتاشیت

نام دیتاشیت DAC5675AIPHP
حجم فایل 118.573 کیلوبایت
نوع فایل pdf
تعداد صفحات 33

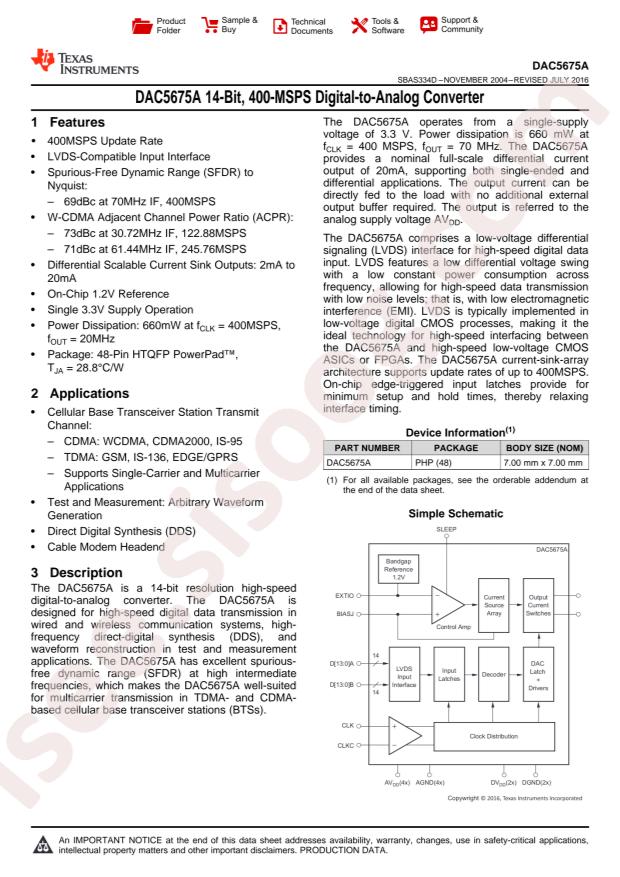

مشاهده دیتاشیت DAC5675AIPHP

دانلود دیتاشیت

سایر مستندات

DAC5675A 31 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC5675AIPHP
  • Interface: Parallel
  • Resolution: 14Bit
  • Output Type: Current-非缓冲
  • Settling Time: 12ns
  • Supply Voltage: 3.15V~3.6V
  • Integral nonlinearity: ±1.5LSB;±0.6LSB
  • Operating Temperature: -40°C~+85°C
  • Package: HTQFP-48(7x7)
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Architecture: Current Source
  • INL/DNL (LSB): ±1.5, ±0.6
  • Number of Bits: 14
  • Part Status: Active
  • Package / Case: 48-PowerTQFP
  • Voltage - Supply, Digital: 3.15V ~ 3.6V
  • Packaging: Tray
  • Data Interface: LVDS - Parallel
  • Reference Type: External, Internal
  • Series: -
  • Differential Output: Yes
  • Supplier Device Package: 48-HTQFP (7x7)
  • Number of D/A Converters: 1
  • Voltage - Supply, Analog: 3.15V ~ 3.6V
  • Base Part Number: DAC5675
  • detail: 14 Bit Digital to Analog Converter 1 48-HTQFP (7x7)
