BTA12-800BWRG 数据手册
其他文档

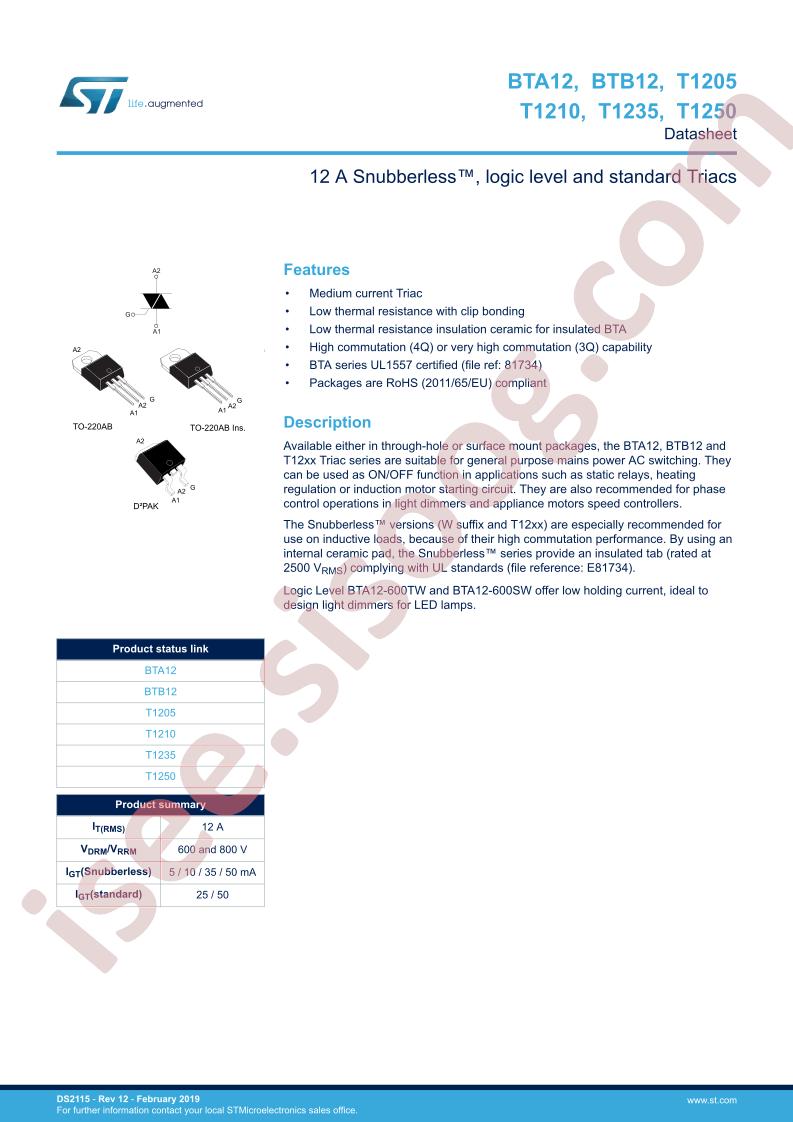

BT(A,B)12, T12xx 16 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- Datasheet: STMicroelectronics BTA12-800BWRG
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: Snubberless™
- Packaging: Tube
- Part Status: Active
- Triac Type: Alternistor - Snubberless
- Voltage - Off State: 800V
- Current - On State (It (RMS)) (Max): 12A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 120A, 126A
- Current - Gate Trigger (Igt) (Max): 50mA
- Current - Hold (Ih) (Max): 50mA
- Configuration: Single
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB Insulated
- Base Part Number: BTA12
- detail: TRIAC Alternistor - Snubberless 800V 12A Through Hole TO-220AB Insulated
