STP25N10F7 دیتاشیت

STP25N10F7

مشخصات دیتاشیت

نام دیتاشیت STP25N10F7
حجم فایل 62.619 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

مشاهده دیتاشیت STP25N10F7

دانلود دیتاشیت

سایر مستندات

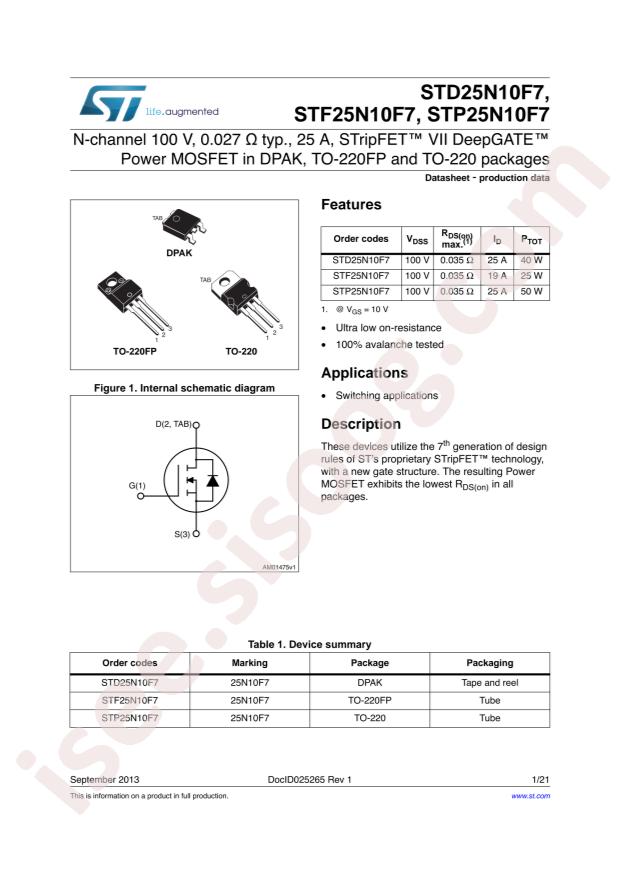

STx25N10F7 21 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP25N10F7
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 50W
  • Total Gate Charge (Qg@Vgs): 14nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 920pF@50V
  • Continuous Drain Current (Id): 25A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 35mΩ@12.5A,10V
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: DeepGATE™, STripFET™ VII
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 25A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 35mOhm @ 12.5A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 14nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 920pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 50W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220
  • Package / Case: TO-220-3
  • Base Part Number: STP25N
  • detail: N-Channel 100V 25A (Tc) 50W (Tc) Through Hole TO-220
