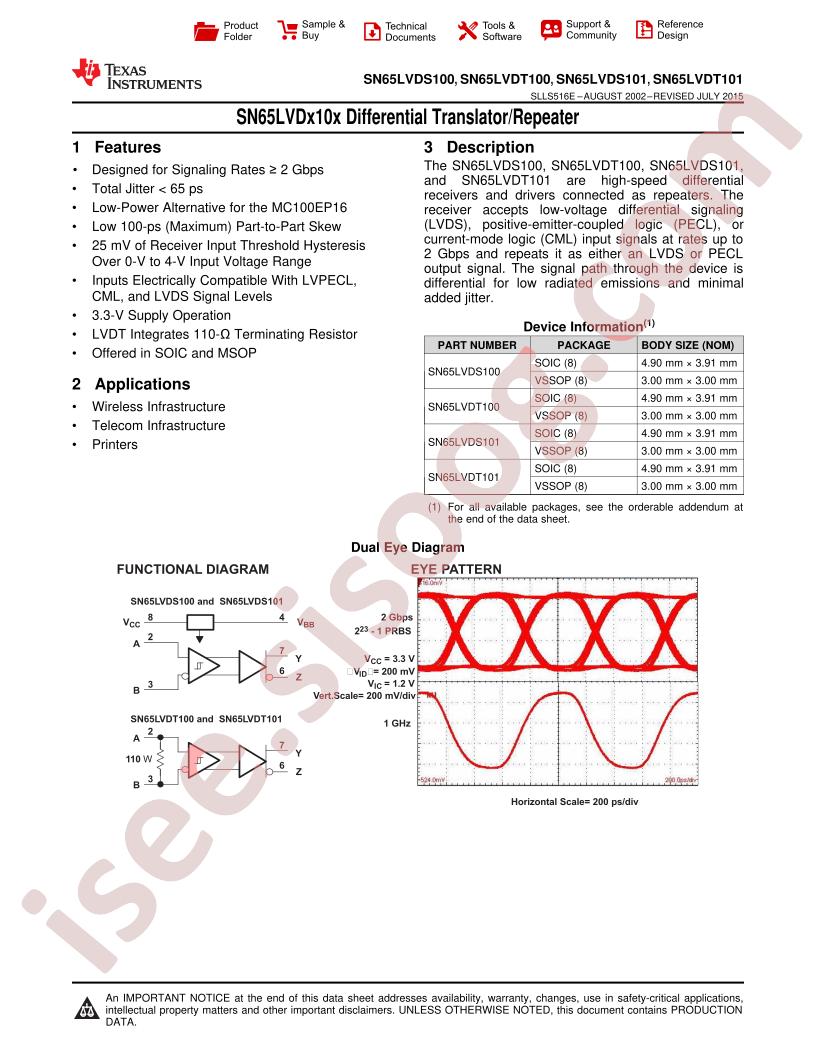

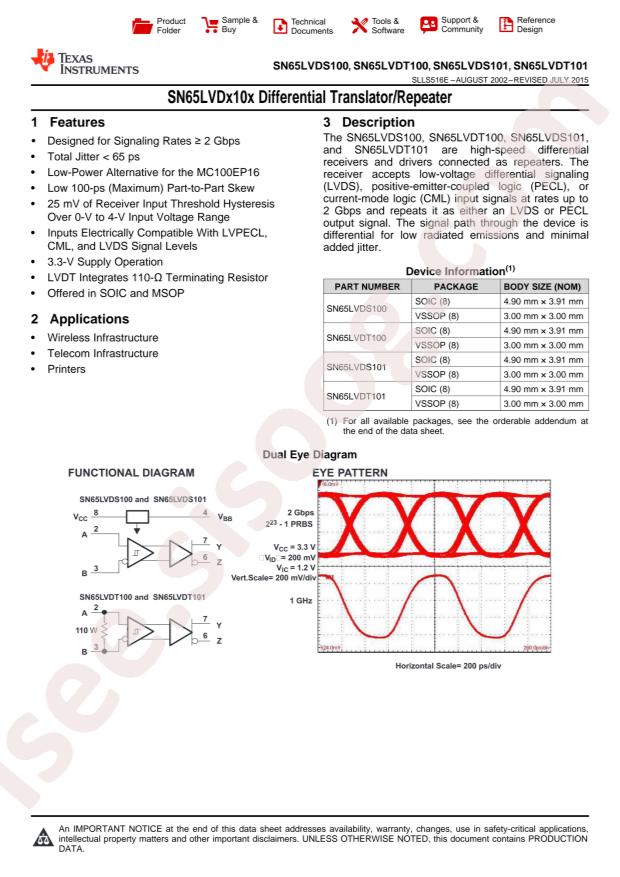

SN65LVDS101DGK دیتاشیت

SN65LVDS101DGK

مشخصات دیتاشیت

نام دیتاشیت SN65LVDS101DGK
حجم فایل 93.258 کیلوبایت
نوع فایل pdf
تعداد صفحات 43

دانلود دیتاشیت SN65LVDS101DGK

دانلود دیتاشیت

سایر مستندات

SN65LVD(S,T)100/01 44 pages

SN65LVD(S,T)100/01 44 pages

مشخصات فنی

  • RoHS: true
  • Type: Buffers;ReDriver
  • Category: Communication Interface Chip/UART/485/232/LVDS ICs
  • Protocol: LVDS
  • Data Rate: 2Gbps
  • Datasheet: Texas Instruments SN65LVDS101DGK
  • Supply Voltage: 3V~3.6V
  • Numberof Drivers: 1
  • Numberof Receivers: 0
  • Package: VSSOP-8-0.65mm
  • Manufacturer: Texas Instruments
  • Applications: -
  • Voltage - Supply: 3V ~ 3.6V
  • Part Status: Active
  • Current - Supply: 50mA
  • Data Rate (Max): 2Gbps
  • Input: CML, LVDS, LVPECL
  • Packaging: Tube
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Number of Channels: 1
  • Series: -
  • Base Part Number: SN65L
  • Operating Temperature: -40°C ~ 85°C
  • Capacitance - Input: 0.6pF
  • Mounting Type: Surface Mount
  • Delay Time: 630ps
  • Output: LVPECL
  • Signal Conditioning: -
  • detail: Buffer, ReDriver 1 Channel 2Gbps 8-SOIC
