دیتاشیت LM2717MT-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2717-ADJ |
|---|---|
| حجم فایل | 1278.753 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |

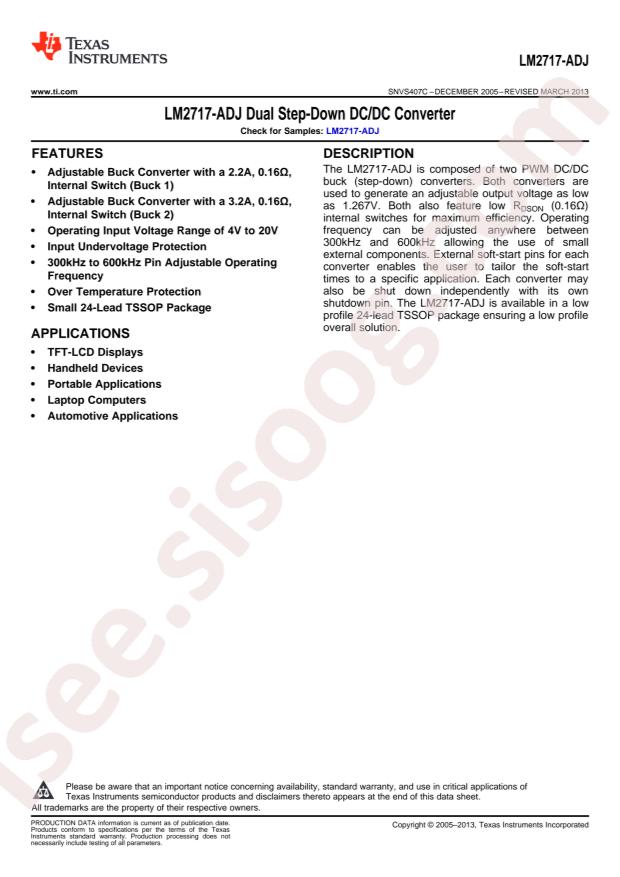

دانلود دیتاشیت LM2717-ADJ |
LM2717-ADJ Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments LM2717MT-ADJ/NOPB
- Output Type: Adjustable
- Input Voltage: 4V~20V
- Output Voltage: 1.258V~18.6V
- Number of Outputs: 2
- Switching Frequency: 600kHz
- Output Current (Max): 2.2A;3.2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TSSOP-24
- Manufacturer: Texas Instruments
- Current - Output: 2.2A, 3.2A
- Voltage - Input (Max): 20V
- Frequency - Switching: 300kHz ~ 600kHz
- Part Status: Active
- Base Part Number: LM2717
- Voltage - Output (Min/Fixed): 1.258V
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- Series: -
- Packaging: Tube
- Synchronous Rectifier: No
- Output Configuration: Positive
- Voltage - Output (Max): 18.6V
- Mounting Type: Surface Mount
- Supplier Device Package: 24-TSSOP
- Voltage - Input (Min): 4V
- detail: Buck Switching Regulator IC Positive Adjustable 1.258V 2 Output 2.2A, 3.2A 24-TSSOP (0.173", 4.40mm Width)
