STF28N60M2 دیتاشیت

STF28N60M2

مشخصات دیتاشیت

نام دیتاشیت STF28N60M2
حجم فایل 61.034 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

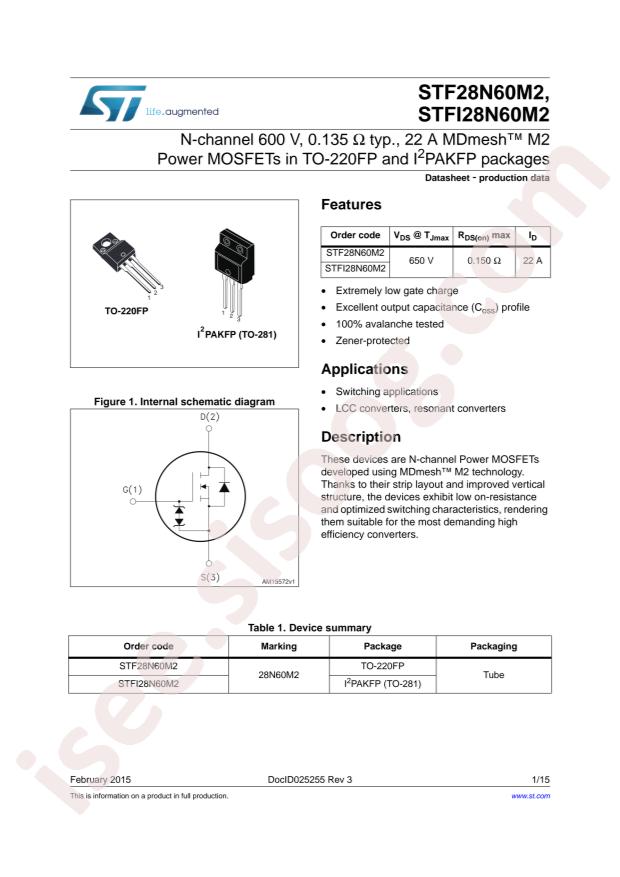

مشاهده دیتاشیت STF28N60M2

دانلود دیتاشیت

سایر مستندات

STF28N60M2 15 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STF28N60M2
  • Package: TO-220F-3
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ II Plus
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 150mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 37nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 1370pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 30W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF28
  • detail: N-Channel 600V 24A (Tc) 30W (Tc) Through Hole TO-220FP
