TLC5540IPW دیتاشیت

TLC5540IPW

مشخصات دیتاشیت

نام دیتاشیت TLC5540IPW
حجم فایل 84.075 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

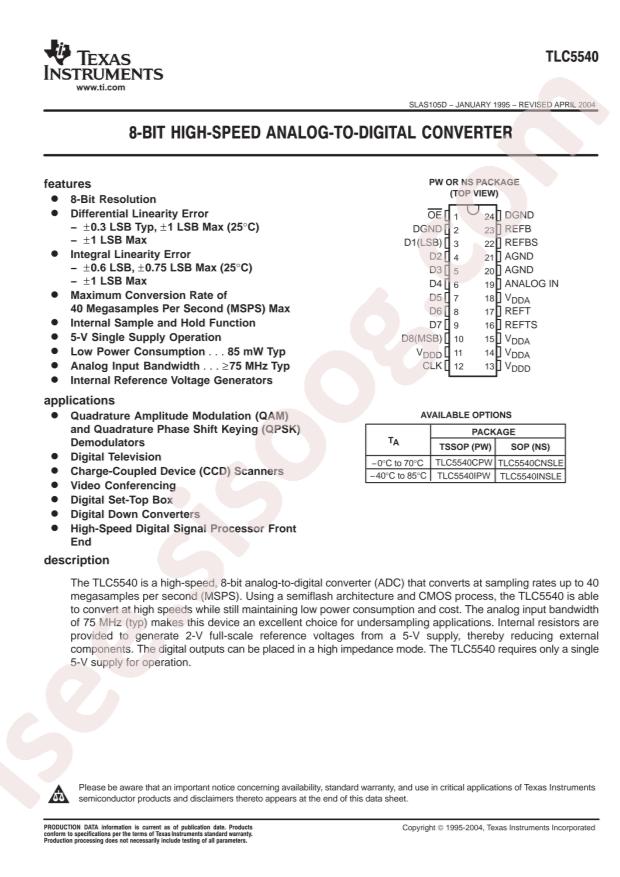

مشاهده دیتاشیت TLC5540IPW

دانلود دیتاشیت

سایر مستندات

TLC5540 Datasheet 24 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments TLC5540IPW
  • Interface: Parallel
  • resolution: 8
  • Supply Voltage: 5V
  • number of channels: 1
  • sampling frequency: 40MHz
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-24
  • Manufacturer: Texas Instruments
  • Architecture: Flash
  • Input Type: Single Ended
  • Series: -
  • Ratio - S/H:ADC: 1:1
  • Packaging: Tube
  • Data Interface: Parallel
  • Reference Type: External
  • Part Status: Active
  • Supplier Device Package: 24-TSSOP
  • Number of A/D Converters: 1
  • Sampling Rate (Per Second): 40M
  • Configuration: S/H-ADC
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width)
  • Mounting Type: Surface Mount
  • Base Part Number: TLC554
  • Features: -
  • Number of Bits: 8
  • Number of Inputs: 1
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • detail: 8 Bit Analog to Digital Converter 1 Input 1 Flash 24-TSSOP
