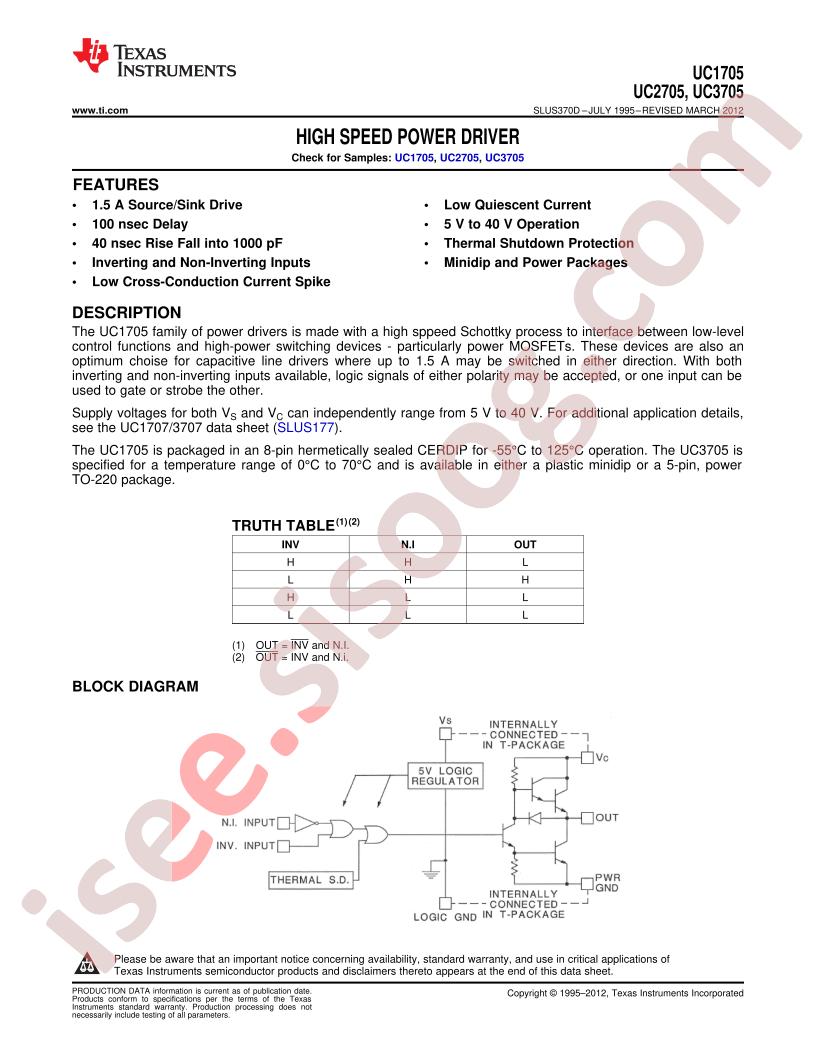

UC1705, 2705, 3705 دیتاشیت

UC1705, 2705, 3705

مشخصات دیتاشیت

نام دیتاشیت UC1705, 2705, 3705
حجم فایل 961.046 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت UC1705, 2705, 3705

دانلود دیتاشیت

سایر مستندات

UC3705D 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UC2705D
  • Fall Time: 60ns
  • Load Type: MOSFET
  • Rise Time: 60ns
  • Supply Voltage: 5V~40V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -25°C~+85°C@(Ta)
  • Peak Output Current(sink): 1.5A
  • Peak Output Current(source): 1.5A
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Channel Type: Single
  • Input Type: Inverting, Non-Inverting
  • Voltage - Supply: 5V ~ 40V
  • Series: -
  • Mounting Type: Surface Mount
  • Packaging: Tube
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 0.8V, 2.2V
  • Rise / Fall Time (Typ): 60ns, 60ns
  • Gate Type: N-Channel MOSFET
  • Base Part Number: UC270
  • Supplier Device Package: 8-SOIC
  • Current - Peak Output (Source, Sink): 1.5A, 1.5A
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 8-SOIC
