SCRs, Triacs, AC Switches and A.S.D.™ Datasheet

SCRs, Triacs, AC Switches and A.S.D.™

Datasheet specifications

Datasheet's name SCRs, Triacs, AC Switches and A.S.D.™
File size 1580.585 KB
File type pdf
Number of pages 26

Download Datasheet SCRs, Triacs, AC Switches and A.S.D.™

Download Datasheet

Other documentations

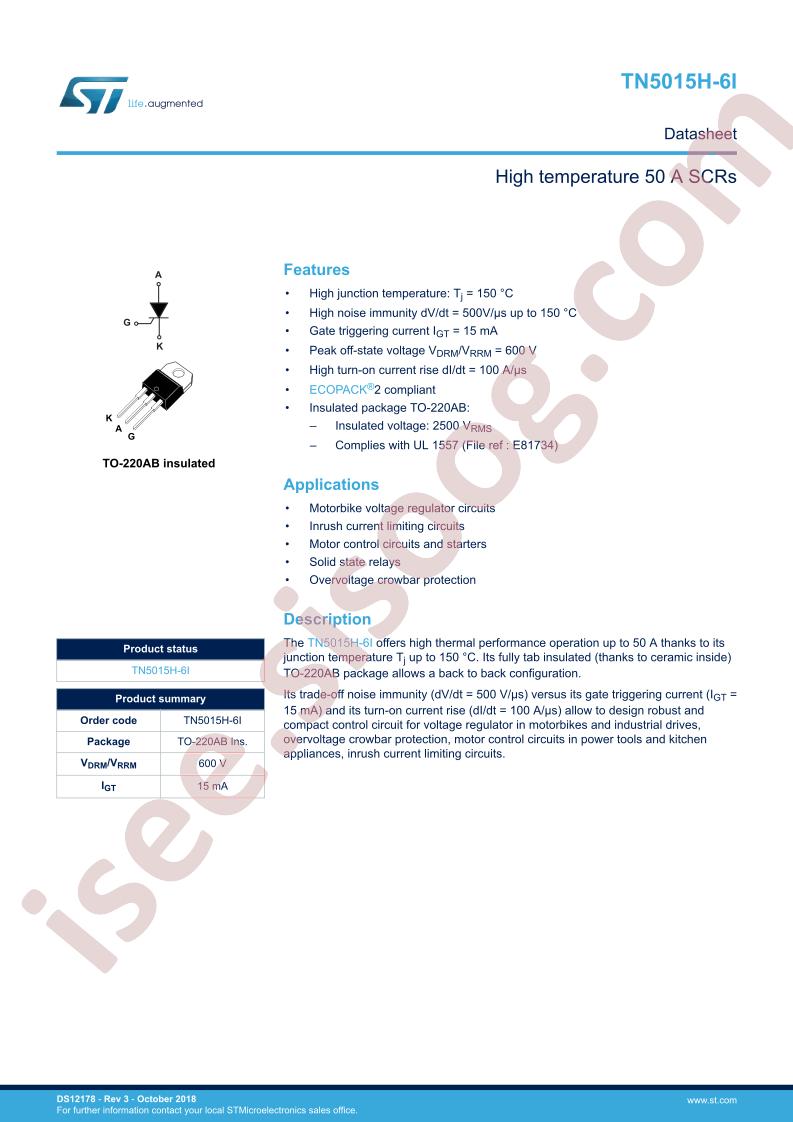

TN5015H-6I Datasheet 13 pages

Technical specifications

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Off State: 600V
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Gate Trigger (Igt) (Max): 15mA
  • Voltage - On State (Vtm) (Max): 1.65V
  • Current - On State (It (AV)) (Max): 30A
  • Current - On State (It (RMS)) (Max): 50A
  • Current - Hold (Ih) (Max): 60mA
  • Current - Off State (Max): 10µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 493A, 450A
  • SCR Type: Standard Recovery
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220AB Insulated
  • Base Part Number: TN5015
  • detail: SCR 600V 50A Standard Recovery Through Hole TO-220AB Insulated
