LMZ12002EXTTZ/NOPB دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LMZ12002EXTTZ/NOPB	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules

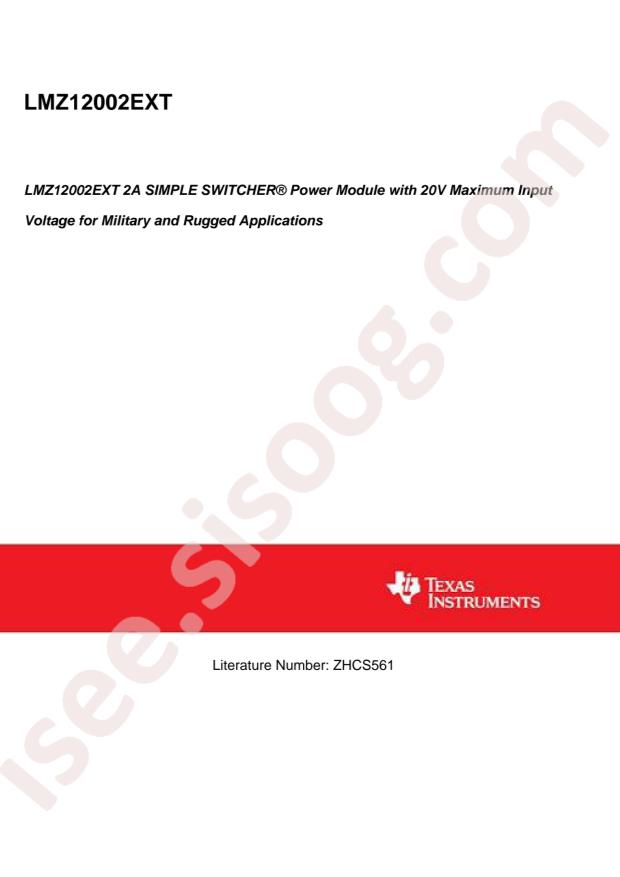

Datasheet: Texas Instruments LMZ12002EXTTZ/NOPB
Output Channel: 1
Output Voltage: 0.8V~6V
Input Voltage(DC): 4.5V~20V
Output Current (Max): 2A
Conversion Efficiency: 92%
Package: TO-263-7
Manufacturer: Texas Instruments
Current - Output (Max): 2A
Applications: ITE (Commercial)
Size / Dimension: 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Voltage - Input (Max): 20V
Part Status: Active
Features: UVLO
Number of Outputs: 1
Packaging: Cut Tape (CT)
Type: Non-Isolated PoL Module
Package / Case: TO-PMOD-7, Power Module
Efficiency: 92%
Voltage - Output 2: -
Series: SIMPLE SWITCHER®
Operating Temperature: -55°C ~ 125°C
Base Part Number: LMZ12002
Voltage - Output 1: 0.8 ~ 6V
Mounting Type: Surface Mount
Voltage - Output 3: -
Voltage - Input (Min): 4.5V
Control Features: Enable, Active High
detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 2A 4.5V - 20V Input
