دیتاشیت STPS10L60CFP

مشخصات دیتاشیت

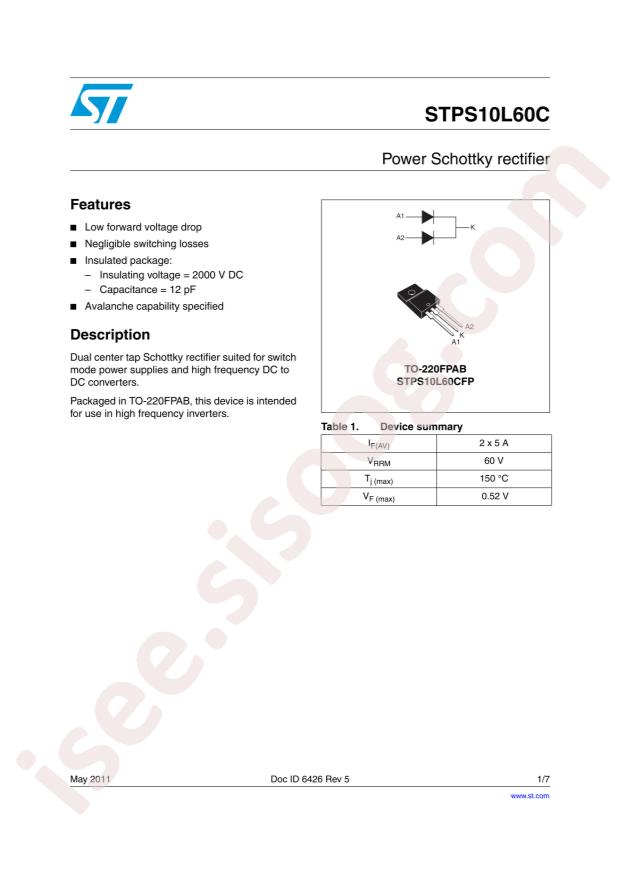

دانلود دیتاشیت STPS10L60C	STPS10L60C Datasheet

RoHS: true
Category: Diodes/Schottky Barrier Diodes (SBD)
Datasheet: STMicroelectronics STPS10L60CFP
Diode Configuration: Dual Common Cathode
Reverse Voltage (Vr): 60V
Forward Voltage (Vf@If): 670mV@10A
Reverse Leakage Current (Ir): 220uA@60V
Average Rectified Current (Io): 5A
Package: TO-220FP-AB
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 60V
Current - Average Rectified (Io) (per Diode): 5A
Voltage - Forward (Vf) (Max) @ If: 550mV @ 5A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr: 220µA @ 60V
Operating Temperature - Junction: 150°C (Max)
Mounting Type: Through Hole
Package / Case: TO-220-3 Full Pack
Supplier Device Package: TO-220FP
Base Part Number: STPS10
detail: Diode Array 1 Pair Common Cathode Schottky 60V 5A Through Hole TO-220-3 Full Pack
