دیتاشیت LM317HVH/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |

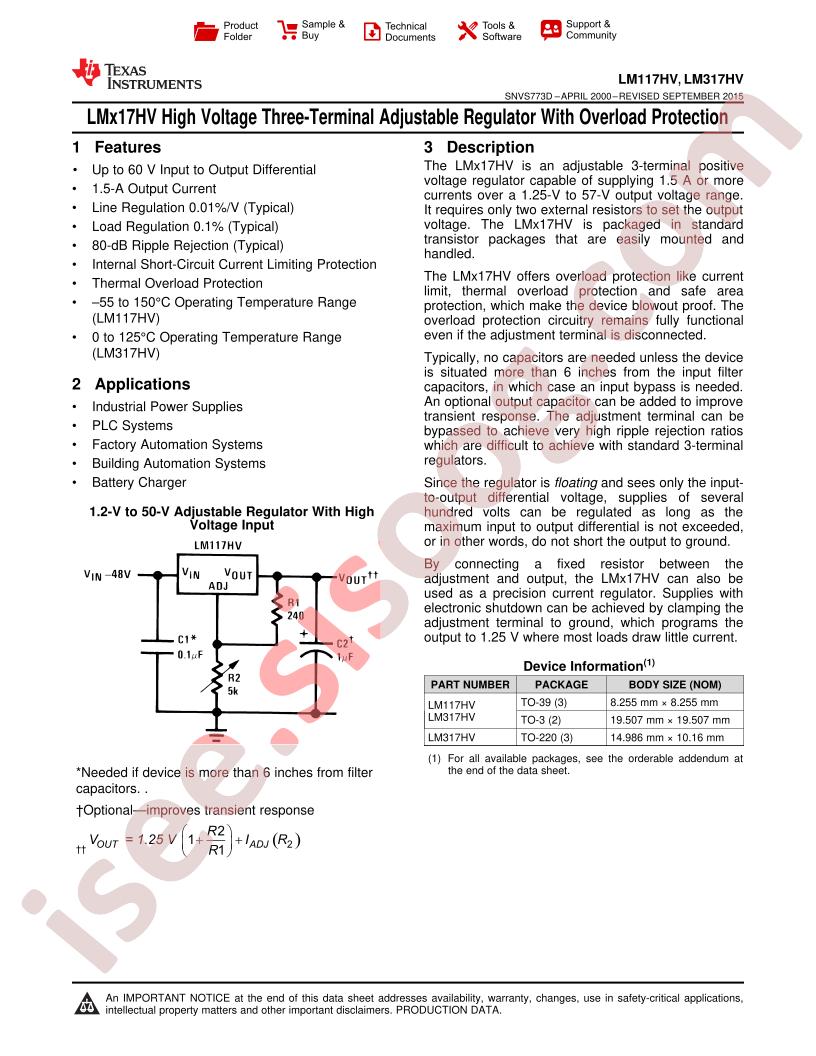

LM117HV, 317HV
|
| حجم فایل |
2171.925
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
27
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

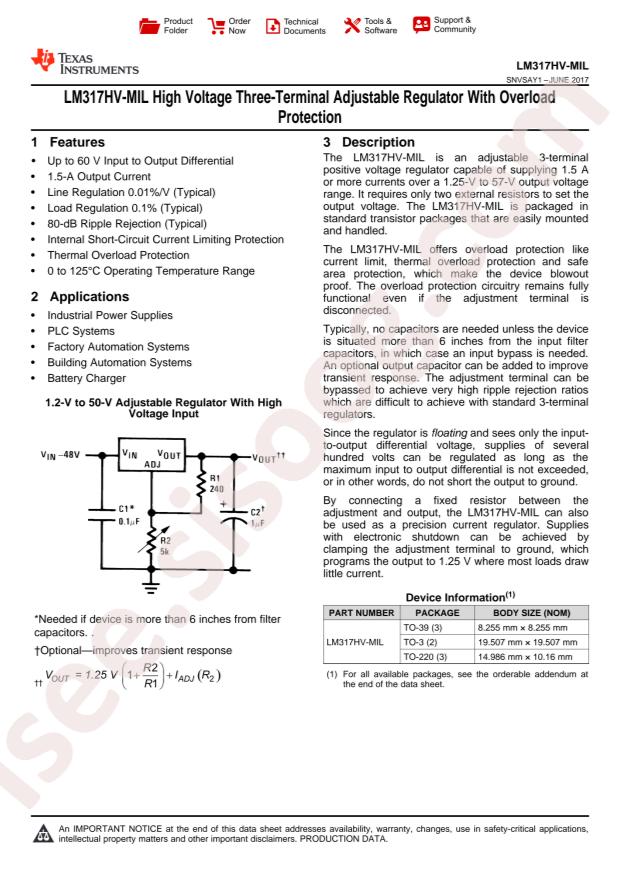

Texas Instruments LM317HVH/NOPB
-
Output Type:
Adjustable
-
Output Current:
1.5A
-
Output Voltage:
1.25V~57V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
60V
-
Operating Temperature:
0°C~+125°C
-
Quiescent Current (Ground Current):
12mA
-
Package:
TO-39-3
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage Dropout (Max):
-
-
Package / Case:
TO-205AD, TO-39-3 Metal Can
-
Base Part Number:
LM317
-
Supplier Device Package:
TO-39-3
-
Current - Output:
1.5A
-
PSRR:
80dB ~ 65dB (120Hz)
-
Part Status:
Active
-
Voltage - Input (Max):
60V
-
Mounting Type:
Through Hole
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Short Circuit
-
Voltage - Output (Min/Fixed):
1.25V
-
Voltage - Output (Max):
57V
-
Packaging:
Bulk
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A TO-39-3
