STGF15M65DF2 Datasheet دیتاشیت

STGF15M65DF2 Datasheet

مشخصات دیتاشیت

نام دیتاشیت STGF15M65DF2 Datasheet
حجم فایل 950.439 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

مشاهده دیتاشیت STGF15M65DF2 Datasheet

دانلود دیتاشیت

سایر مستندات

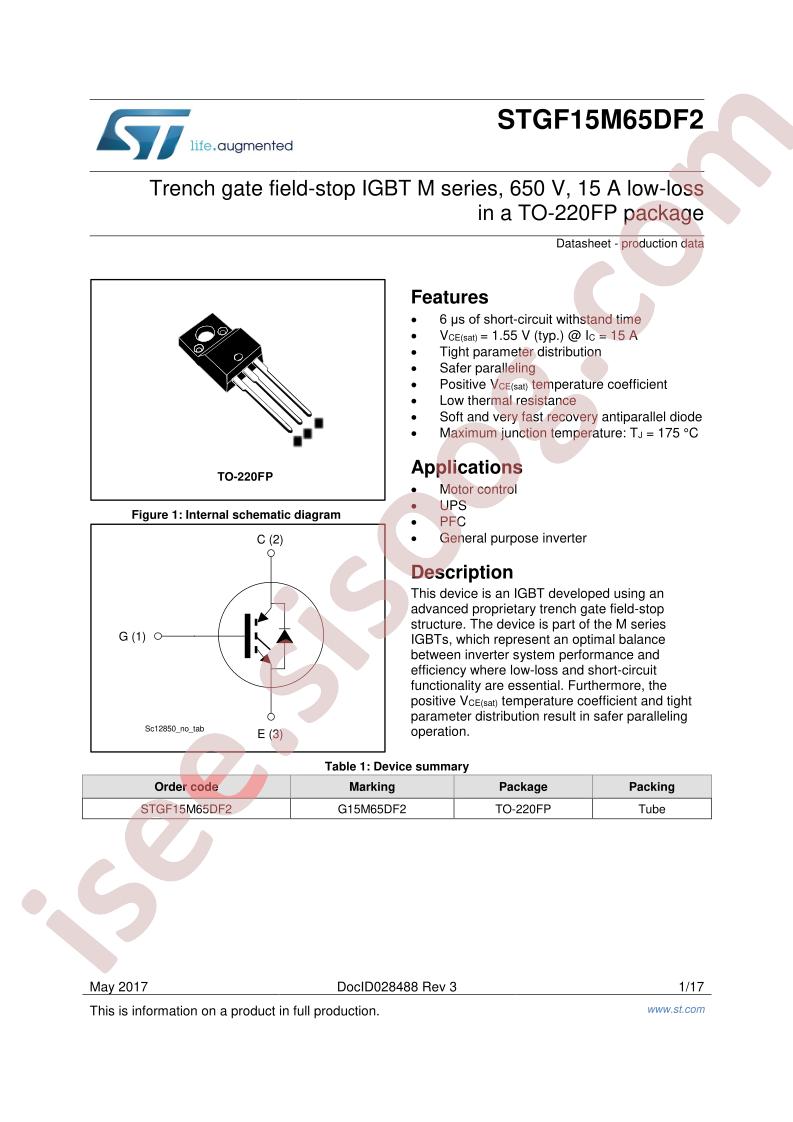

STGF15M65DF2 17 pages

مشخصات فنی

  • RoHS: true
  • Type: Trench Field Stop
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGF15M65DF2
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Collector Current (Ic): 30A
  • Power Dissipation (Pd): 31W
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.09mJ
  • Pulsed Collector Current (Icm): 60A
  • Turn?off Switching Loss (Eoff): 0.45mJ
  • Diode Reverse Recovery Time (Trr): 142ns
  • Collector-Emitter Breakdown Voltage (Vces): 650V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-220FP-3
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 650V
  • Current - Collector (Ic) (Max): 30A
  • Current - Collector Pulsed (Icm): 60A
  • Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 15A
  • Power - Max: 31W
  • Switching Energy: 90µJ (on), 450µJ (off)
  • Input Type: Standard
  • Gate Charge: 45nC
  • Td (on/off) @ 25°C: 24ns/93ns
  • Test Condition: 400V, 15A, 12Ohm, 15V
  • Reverse Recovery Time (trr): 142ns
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220FP
  • Base Part Number: STGF15
  • detail: IGBT Trench Field Stop 650V 30A 31W Through Hole TO-220FP
