دیتاشیت STPS745D

STPS745

مشخصات دیتاشیت

نام دیتاشیت STPS745
حجم فایل 523.589 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت STPS745

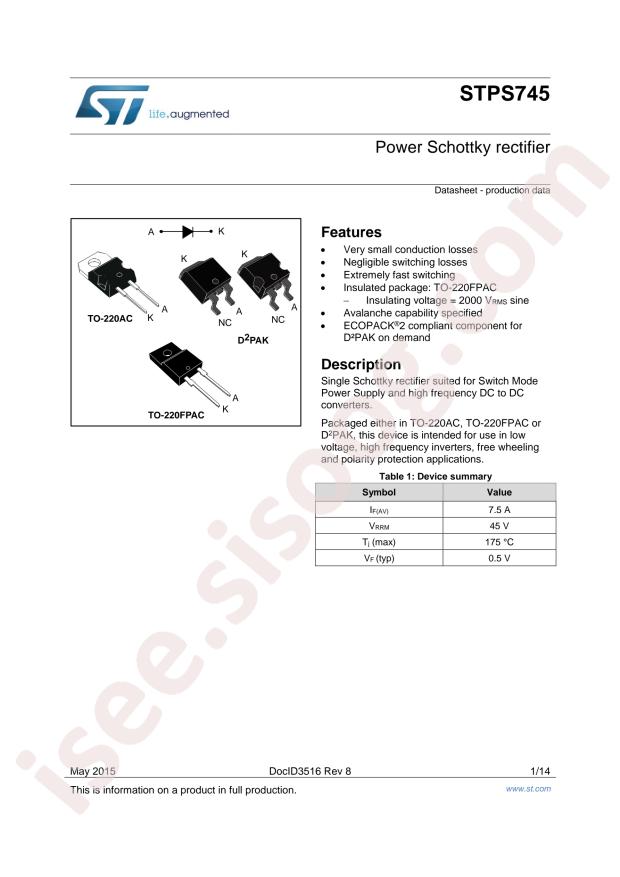

STPS745 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS745D
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 45V
  • Forward Voltage (Vf@If): 840mV@15A
  • Reverse Leakage Current (Ir): 100uA@45V
  • Average Rectified Current (Io): 7.5A
  • Package: TO-220-2
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 45V
  • Current - Average Rectified (Io): 7.5A
  • Voltage - Forward (Vf) (Max) @ If: 840mV @ 15A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 100µA @ 45V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220AC
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STPS7
  • detail: Diode Schottky 45V 7.5A Through Hole TO-220AC
