TPS70348PWP دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت TPS70348PWP	دانلود دیتاشیت

RoHS: true
Noise: 79uVrms;77uVrms
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS70348PWP
Output Type: Fixed
Output Current: 1A;2A
Output Voltage: 3.3V;1.5V~1.5V
Dropout Voltage: 250mV@(1A);-
Output Polarity: Positive
Number of Outputs: 2
Maximum Input Voltage: 6V
Power Supply Rejection Ratio (PSRR): 65dB@(1kHz);60dB@(1kHz)

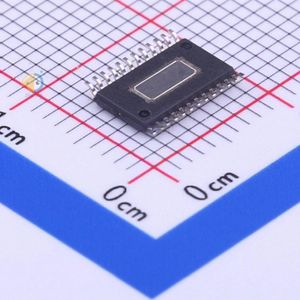

Package: TSSOP-24-EP
Manufacturer: Texas Instruments
Voltage - Input (Max): 6V
Current - Quiescent (Iq): 250µA
Output Configuration: Positive
Base Part Number: TPS703
Voltage - Output (Min/Fixed): 3.3V, 1.5V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Series: -
Packaging: Tube
PSRR: 65dB (1kHz), 60dB (1kHz)
Supplier Device Package: 24-HTSSOP
Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Number of Regulators: 2
Operating Temperature: -40°C ~ 125°C
Part Status: Active
Control Features: Enable, Power Good, Reset, Sequencing
Voltage - Output (Max): -
Mounting Type: Surface Mount
Voltage Dropout (Max): 0.25V @ 1A, -
Current - Output: 1A, 2A
detail: Linear Voltage Regulator IC 2 Output 1A, 2A 24-HTSSOP
