- دیتاشیت STBR3012WY

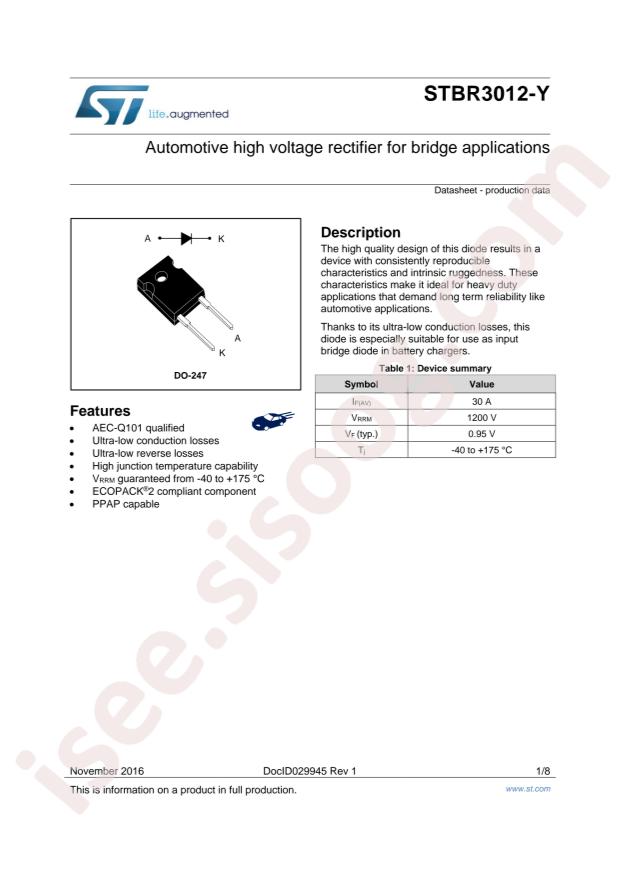

STBR3012WY دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STBR3012WY |
|---|---|
| حجم فایل | 49.356 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت STBR3012WY |
دانلود دیتاشیت |
|---|
سایر مستندات
Diodes Finder,APP for Android,IOS 1 pages
STBR3012WY 12 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - General Purpose
- Datasheet: STMicroelectronics STBR3012WY
- Diode Configuration: Single
- Reverse Voltage (Vr): 1.2kV
- Forward Voltage (Vf@If): 1.05V@30A
- Reverse Leakage Current: 2uA@1.2kV
- Average Rectified Current (Io): 30A
- Package: DO-247
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q101, ECOPACK®2
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200V
- Current - Average Rectified (Io): 30A
- Voltage - Forward (Vf) (Max) @ If: 1.3V @ 30A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 2µA @ 1200V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-247-2 (Straight Leads)
- Supplier Device Package: DO-247
- Operating Temperature - Junction: -40°C ~ 175°C
- Base Part Number: STBR30
- detail: Diode Standard 1200V 30A Through Hole DO-247
