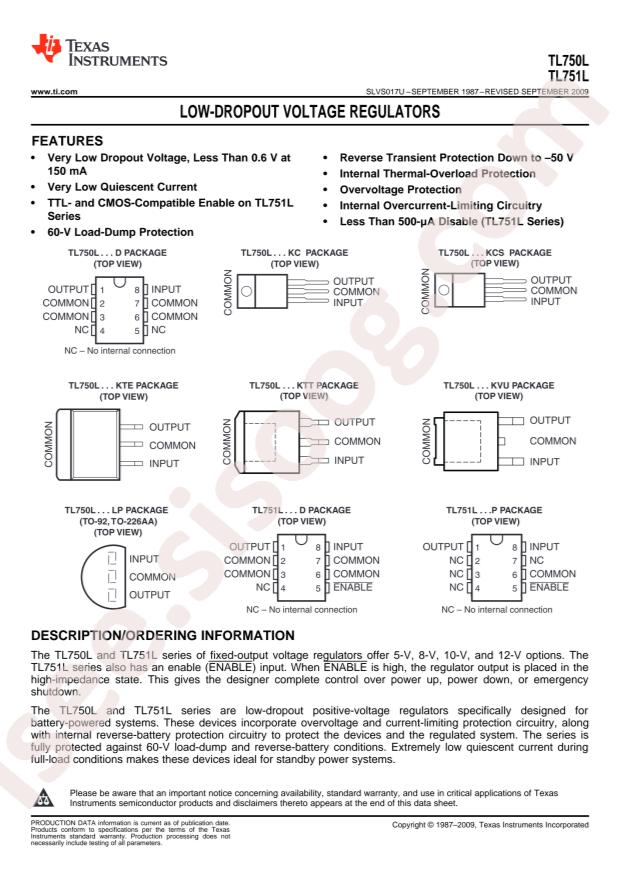

TL750L12CDR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TL750L12CDR |
|---|---|
| حجم فایل | 97.924 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت TL750L12CDR |
دانلود دیتاشیت |
|---|
سایر مستندات
TL750L, TL751L Series 28 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TL750L12CDR
- Output Type: Fixed
- Output Current: 150mA
- Output Voltage: 12V
- Dropout Voltage: 600mV@(150mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 26V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 2mA
- Power Supply Rejection Ratio (PSRR): 65dB@(120Hz)
- Package: SOP-8
- Manufacturer: Texas Instruments
- Current - Supply (Max): 12mA
- Output Configuration: Positive
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Packaging: Cut Tape (CT)
- Protection Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity
- Number of Regulators: 1
- Part Status: Active
- Current - Quiescent (Iq): 2mA
- Supplier Device Package: 8-SOIC
- Voltage - Input (Max): 26V
- Voltage - Output (Min/Fixed): 12V
- Mounting Type: Surface Mount
- PSRR: 65dB (120Hz)
- Base Part Number: TL750
- Series: -
- Control Features: -
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 150mA
- Current - Output: 150mA
- detail: Linear Voltage Regulator IC 1 Output 150mA 8-SOIC
