SN74LVC1G80QDCKRQ1 دیتاشیت

SN74LVC1G80QDCKRQ1

مشخصات دیتاشیت

نام دیتاشیت SN74LVC1G80QDCKRQ1
حجم فایل 70.82 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

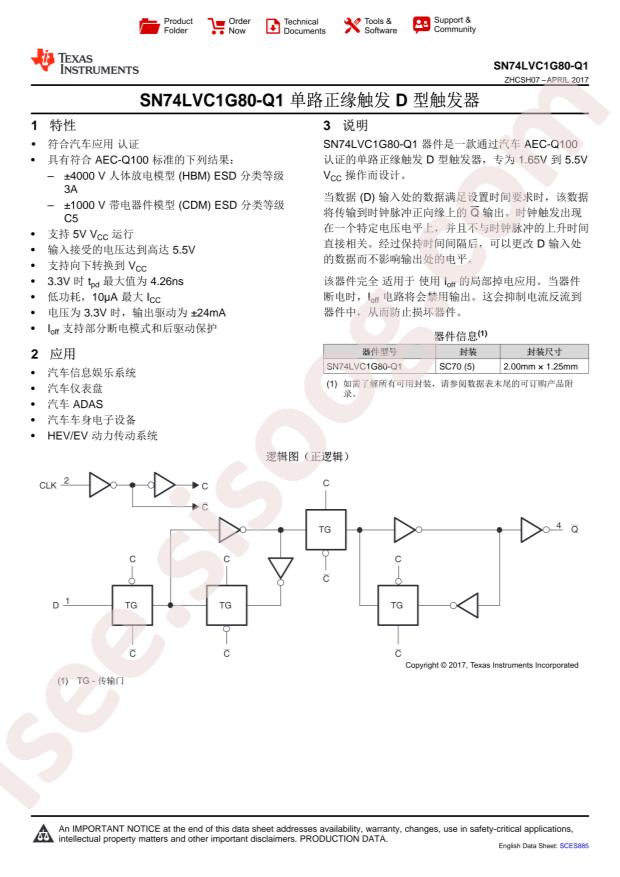

مشاهده دیتاشیت SN74LVC1G80QDCKRQ1

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

Signal Switch Data Book 1267 pages

Digital Logic Data Book 794 pages

LVC & LV Data Book 915 pages

SN74LVC1G80-Q1 Datasheet 23 pages

مشخصات فنی

  • RoHS: true
  • Type: D-Type
  • Series: 74LVC
  • Category: Logic ICs/Flip Flops
  • Function: -
  • Datasheet: Texas Instruments SN74LVC1G80QDCKRQ1
  • Output Type: Inverted
  • Sink Current: 32mA
  • Trigger Type: 上升沿
  • Source Current: 32mA
  • Supply Voltage: 1.65V~5.5V
  • Clock Frequency: 160MHz
  • Input Capacitance: 3.5pF
  • Number of Elements: 1
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Iq): 10uA
  • Maximum Propagation Delay: 5.5ns@5V,50pF
  • Number of Bits per Element: 1
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 1.65V ~ 5.5V
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Packaging: Digi-Reel®
  • Supplier Device Package: SC-70-5
  • Current - Output High, Low: 32mA, 32mA
  • Part Status: Active
  • Base Part Number: SN74LVC1G
  • Mounting Type: Surface Mount
  • Current - Quiescent (Iq): 10µA
  • Max Propagation Delay @ V, Max CL: 5.5ns @ 5V, 50pF
  • detail: Flip Flop 1 Element D-Type 1 Bit Positive Edge 5-TSSOP, SC-70-5, SOT-353
