CD74HCT00M96 数据手册
其他文档

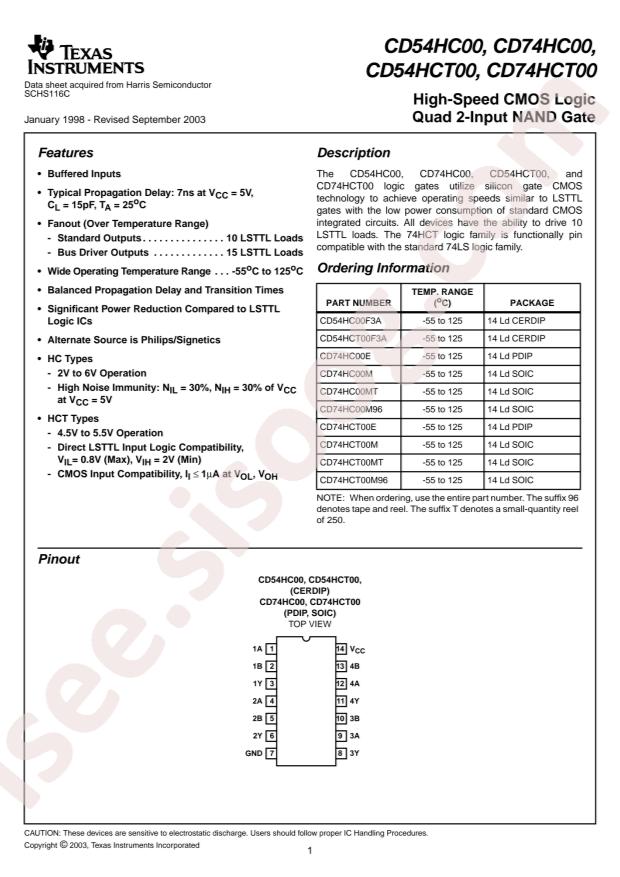

CD54,74HC(T)00 17 pages
技术规格
- RoHS: true
- Series: 74HCT
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments CD74HCT00M96
- Sink Current: 4mA
- Source Current: 4mA
- Supply Voltage: 4.5V~5.5V
- Logic Gate Type: NAND Gates
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: -55°C~+125°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 20ns@4.5V,50pF
- Quiescent Current (Max): 2uA
- Package: SOIC-14
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 0.8V
- Current - Quiescent (Max): 2µA
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 4
- Packaging: Cut Tape (CT)
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: 4mA, 4mA
- Features: -
- Base Part Number: 74HCT00
- Supplier Device Package: 14-SOIC
- Number of Inputs: 2
- Logic Type: NAND Gate
- Max Propagation Delay @ V, Max CL: 20ns @ 4.5V, 50pF
- detail: NAND Gate IC 4 Channel 14-SOIC
