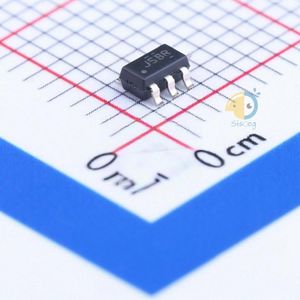

TS5A4595DBVR دیتاشیت

مشخصات دیتاشیت

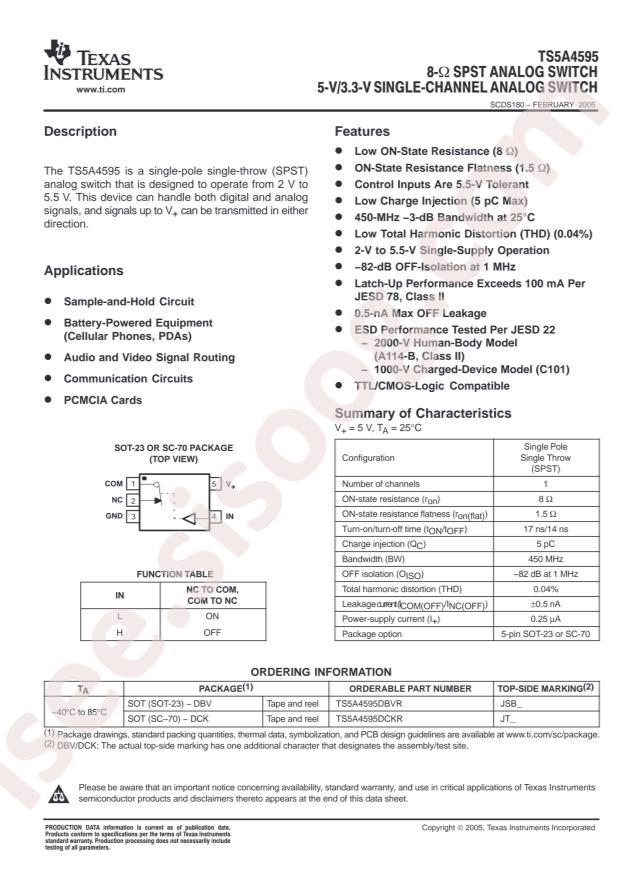

مشاهده دیتاشیت TS5A4595DBVR	دانلود دیتاشیت

TS5A4595 22 pages

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TS5A4595DBVR
Turn-on time: 17ns
Turn-off time: 14ns
Supply Voltage: 2V~5.5V
Switch Circuit: SPST(SPST)-Normally closed
Number of Channels: 1
Operating Temperature: -40°C~+85°C
On-State Resistance (Max): 8Ω
Package: SOT-23-5
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 500pA
Voltage - Supply, Single (V+): 2V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): -
Package / Case: SC-74A, SOT-753
Part Status: Active
Supplier Device Package: SOT-23-5
Switch Time (Ton, Toff) (Max): 17ns, 14ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 450MHz
Mounting Type: Surface Mount
Crosstalk: -
Base Part Number: TS5A459
Series: -
Channel Capacitance (CS(off), CD(off)): 6.5pF, 6.5pF
Multiplexer/Demultiplexer Circuit: 1:1
Charge Injection: 2pC
detail: 1 Circuit IC Switch 1:1 8Ohm SOT-23-5
