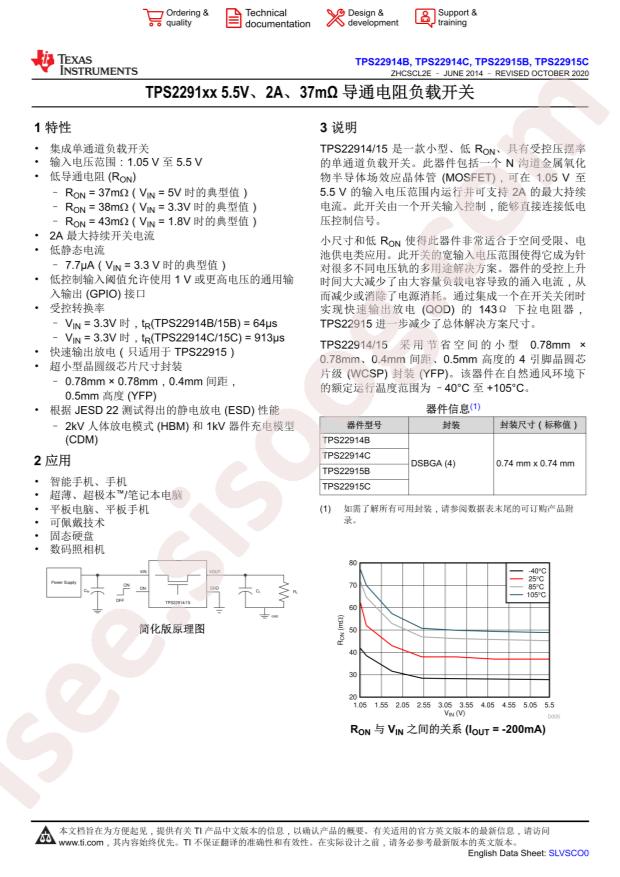

TPS22915CYFPT Datasheet

TPS22915CYFPT

Datasheet specifications

Datasheet's name TPS22915CYFPT
File size 92.379 KB
File type pdf
Number of pages 30

Download Datasheet TPS22915CYFPT

Download Datasheet

Other documentations

TPS22914(B,C), TPS22915(B,C) 30 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS22914BYFPT
  • Input Voltage: 1.05V~5.5V
  • Output Current: 2A
  • Number of Outputs: 1
  • Resistor On-State: 37mΩ
  • Operating Temperature -: -40°C~+85°C
  • Package: BGA-4
  • Manufacturer: Texas Instruments
  • Input Type: Non-Inverting
  • Output Configuration: High Side
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • Switch Type: General Purpose
  • Part Status: Active
  • Supplier Device Package: 4-DSBGA
  • Mounting Type: Surface Mount
  • Fault Protection: -
  • Rds On (Typ): 37mOhm
  • Current - Output (Max): 2A
  • Package / Case: 4-XFBGA, DSBGA
  • Series: -
  • Interface: On/Off
  • Base Part Number: TPS229
  • Features: Slew Rate Controlled
  • Output Type: N-Channel
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Voltage - Load: 1.05V ~ 5.5V
  • detail: Power Switch/Driver 1:1 N-Channel 2A 4-DSBGA
