LM3697YFQR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM3697YFQR
|
|
حجم فایل
|
78.973
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
42
|
مشخصات فنی
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
3
-
Topology:
boost converter
-
Datasheet:
Texas Instruments LM3697YFQR
-
Input Voltage:
2.7V~5.5V
-
Output Current:
30mA
-
Output Voltage:
40V
-
Switch Frequency:
500kHz;1MHz
-
Operating temperature:
-40°C~+85°C
-

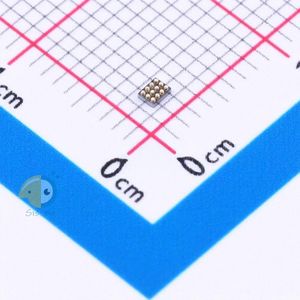

Package:
BGA-12
-
Manufacturer:
Texas Instruments
-
Internal Switch(s):
Yes
-
Voltage - Output:
40V
-
Voltage - Supply (Max):
5.5V
-
Part Status:
Active
-
Applications:
Backlight
-
Voltage - Supply (Min):
2.7V
-
Package / Case:
12-WFBGA, DSBGA
-
Frequency:
500kHz, 1MHz
-
Packaging:
Cut Tape (CT)
-
Dimming:
-
-
Series:
-
-
Base Part Number:
LM369
-
Supplier Device Package:
12-DSBGA (1.64x1.24)
-
Mounting Type:
Surface Mount
-
Number of Outputs:
3
-
Current - Output / Channel:
30mA
-
detail:
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) Dimming 30mA 12-DSBGA (1.64x1.24)
