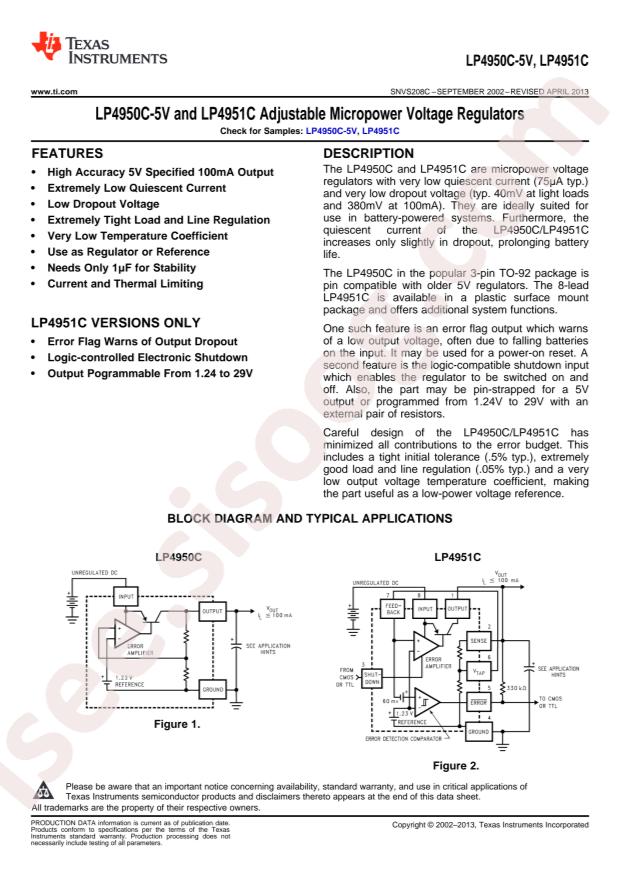

- دیتاشیت LP4951CMX/NOPB
LP4951CMX/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LP4951CMX/NOPB |
|---|---|
| حجم فایل | 99.047 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LP4951CMX/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
LP4950C-5V,LP4951C 23 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP4951CMX/NOPB
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 1.235V~30V
- Dropout Voltage: 0.6V@(100mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 170uA
- Package: SOP-8
- Manufacturer: Texas Instruments
- Control Features: Enable
- Base Part Number: LP4951
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Supply (Max): 19mA
- Part Status: Obsolete
- Current - Output: 100mA
- PSRR: -
- Series: -
- Voltage - Output (Min/Fixed): 1.235V
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Current - Quiescent (Iq): 170µA
- Output Configuration: Positive
- Voltage Dropout (Max): 0.6V @ 100mA
- Supplier Device Package: 8-SOIC
- Protection Features: Over Current, Over Temperature
- Voltage - Input (Max): 30V
- Packaging: Tape & Reel (TR)
- Voltage - Output (Max): 30V
- detail: Linear Voltage Regulator IC 1 Output 100mA 8-SOIC
