TPS62590-Q1 Datasheet دیتاشیت

مشخصات دیتاشیت

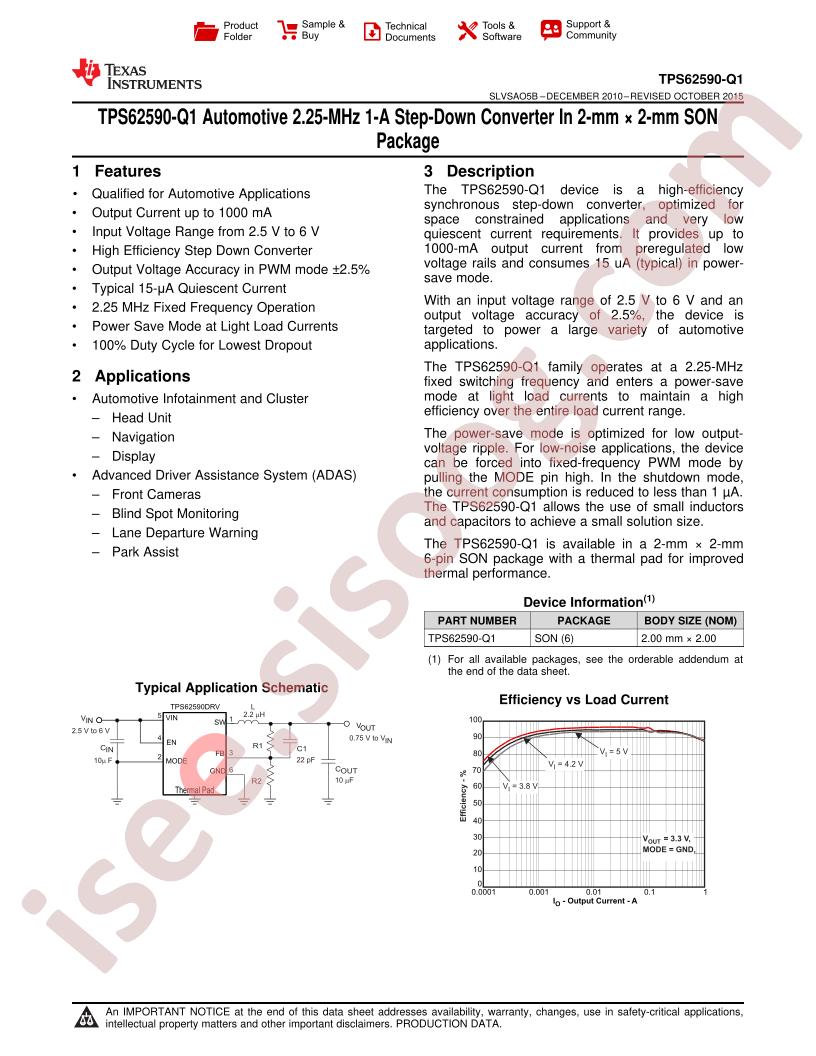

مشاهده دیتاشیت TPS62590-Q1 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS62590TDRVRQ1
Output Type: Adjustable
Input Voltage: 2.5V~6V
Output Voltage: 0.75V~6V
Number of Outputs: 1
Switching Frequency: 2.25MHz
Output Current (Max): 1A
Operating Temperature: -40°C~+105°C@(TA)
Synchronous Rectification: Yes
Package: DFN-6(2x2)
Manufacturer: Texas Instruments
Current - Output: 1A
Voltage - Input (Max): 6V
Frequency - Switching: 2.25MHz
Part Status: Active
Base Part Number: TPS625
Voltage - Output (Min/Fixed): 0.75V
Package / Case: 6-WDFN Exposed Pad
Series: Automotive, AEC-Q100
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Output Configuration: Positive
Voltage - Output (Max): 6V
Mounting Type: Surface Mount
Supplier Device Package: 6-WSON (2x2)
Voltage - Input (Min): 2.5V
detail: Buck Switching Regulator IC Positive Adjustable 0.75V 1 Output 1A 6-WDFN Exposed Pad
