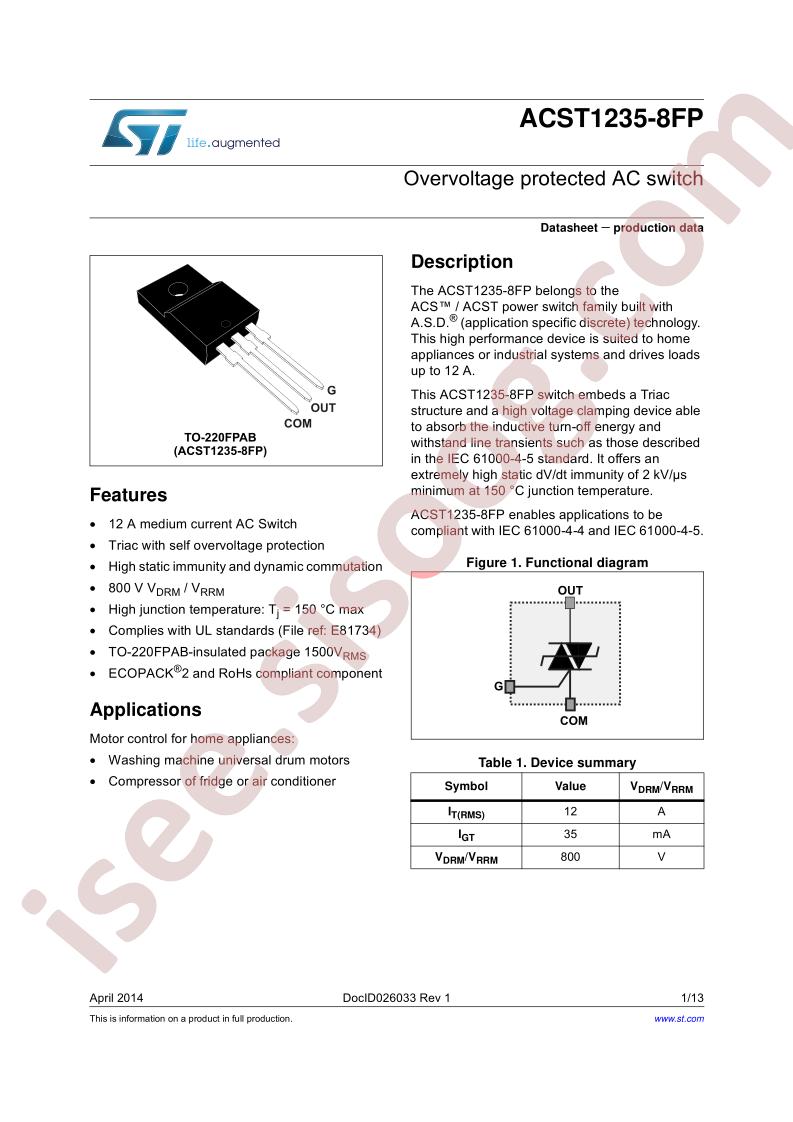

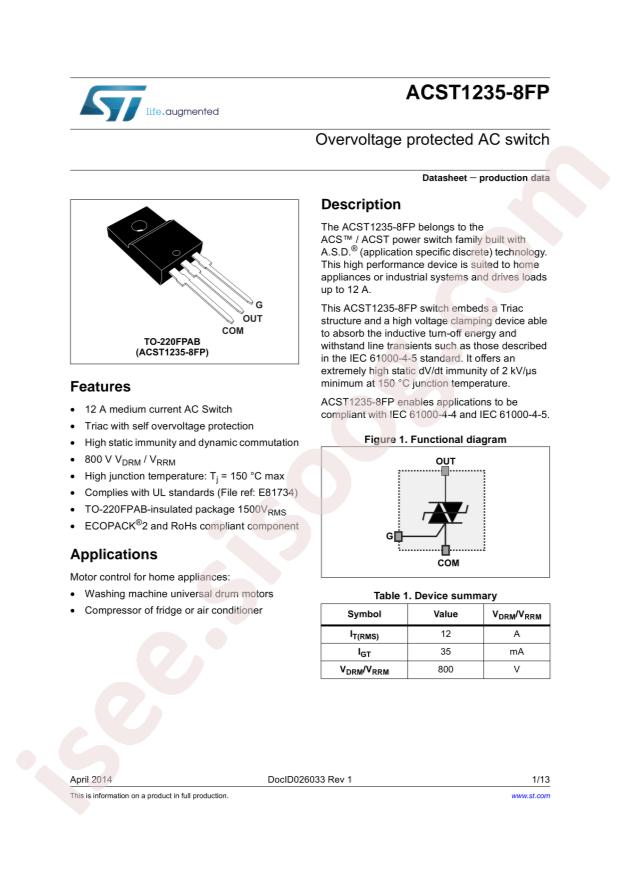

ACST1235-8FP Datasheet

ACST1235-8FP

Datasheet specifications

Datasheet's name ACST1235-8FP
File size 65.544 KB
File type pdf
Number of pages 13

Download Datasheet ACST1235-8FP

Download Datasheet

Other documentations

SCRs, Triacs, AC Switches and A.S.D.™ 26 pages

ACST1235-8FP 13 pages

ACST Series Flyer 2 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • Datasheet: STMicroelectronics ACST1235-8FP
  • Package: TO-220FP-AB-3
  • Manufacturer: STMicroelectronics
  • Series: ACS™/A.S.D®
  • Packaging: Tube
  • Part Status: Active
  • Triac Type: Standard
  • Voltage - Off State: 800V
  • Current - On State (It (RMS)) (Max): 12A
  • Voltage - Gate Trigger (Vgt) (Max): 1V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 100A, 105A
  • Current - Gate Trigger (Igt) (Max): 35mA
  • Current - Hold (Ih) (Max): 30mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220FPAB
  • Base Part Number: ACST12
  • detail: TRIAC Standard 800V 12A Through Hole TO-220FPAB
